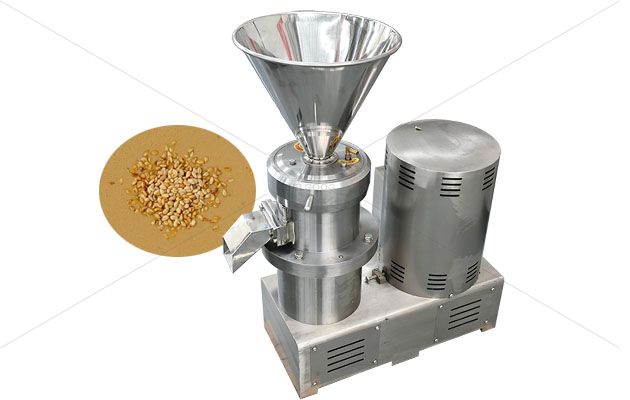

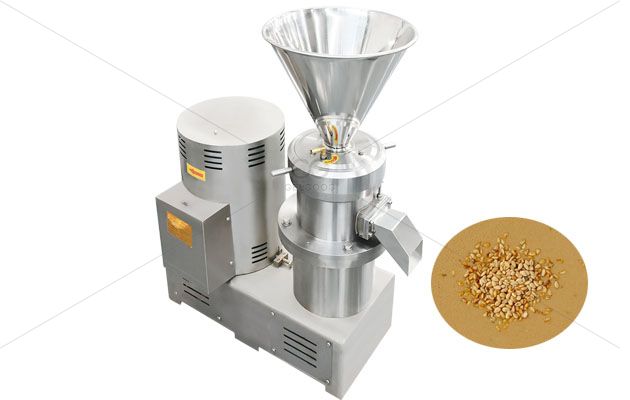

This industrial grinding machine is a type machinery used for grinding sesame seeds into smooth tahini paste.
Capacity of Sesame Tahini Grinding Machine
The yield of processing tomatoes and sesame seeds is different. The better the fluidity, the greater the yield. This sesame paste grinding machine, also named colloid mill, is a centrifugal equipment with simple structure and convenient equipment maintenance. It is suitable for materials with higher viscosity and larger particles. The flow rate varies greatly for materials with different viscosities.
According to the material processing requirements, one or more grindings can be performed. Several experiments should be done before grinding to ensure the optimal gap and flow rate. Quartz sand, broken glass, metal chips and other hard materials are not allowed to be mixed in the processed materials, and they are strictly prohibited from entering the colloid mill processing and production.
Colloid mills are widely used in various fields of food. Due to the need to adapt to the requirements of various working conditions, they can be ground multiple times.
Technical Parameter of Industrial Sesame Grinding Machine
| Model | Fineness | Capacity（t/h） | Power(kw) | Dimension | Wight |
| GHJM0080A | 80-100mesh | 0.07-0.5 | 4 | 680*380*930 | 210 |
| GHJM0110A | 0.3-1.2 | 7.5 | 750*450*1000 | 280 | |
| GHJM0130A | 0.4-2.0 | 15 | 990*450*1100 | 400 | |
| GHJM0180A | 0.8-6.0 | 22 | 1000*480*1150 | 450 | |
| GHJM0240A | 4.0-12 | 45 | 1330*650*1300 | 1000 | |
| GHJM0300A | 6.0-25 | 90 | 1450*630*1420 | 1600 |
