Sugar Grinding Machine Introduction
Katherine /
05 Dec,2016
Sugar Grinding Machine is widely use for processing salt, sugar, soybeans, peas, lentils, mung beans, flavors and fragrances, sweeteners, nuts, chili, spices, chicken, monosodium glutamate, monosodium glutamate and so on. It is mainly used in foodstuffs, Potato chips, crushed bread, cocoa powder, potato flour, coffee, milk powder, onion, dehydrated vegetables, agricultural products, lotus seeds, glucose, oat hulls, husks, ginger, pepper, cumin, pepper, , Cinnamon,), pharmaceutical, chemical (calcium carbonate, urea, copper oxide, copper, etc.), cosmetics, biological, veterinary drugs and other low-hardness materials crushing processing, fineness between 30-150 mesh adjustment, with high yield Low noise, low energy consumption, simple maintenance, easy installation, etc., especially for oil, viscous, heat-sensitive, fibrous materials such as low hardness of the grinding process.
The structure and working principle:

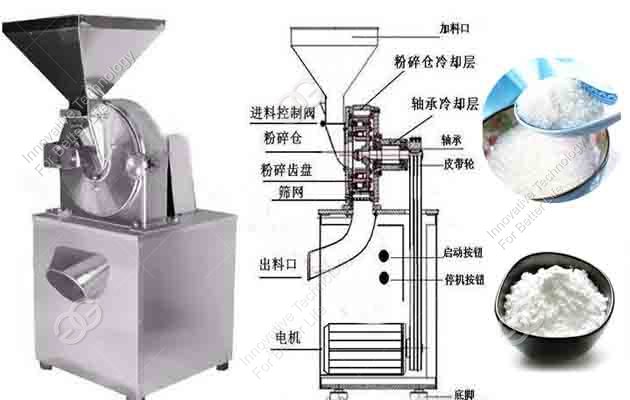

1, The structure: food crusher main chassis, doors, turbines, spindle, screen, pulley and motor parts and components.
2, The working principle:
Food mill crusher, the motor drives the spindle and turbine high-speed rotation. When the material from the hopper into the cavity, the material in the turbulent flow of turbulence close friction and strong impact on the inside of the turbine blades, and the blade in the blade ring on the grinding wheel composed of broken, And the grinding block between the cracks in the re-grinding. In the crushing of materials at the same time, the turbine inhaled a lot of air, which played a cooling air machine, grinding materials and the role of transmission of fine materials. Material fineness depends on the nature of the material and the size of the screen, and material and air throughput.
FL - bearing components of the mill with a special labyrinth seal, can effectively prevent the dust into the bearing cavity, thus extending the life of the bearing. Silicone rubber sealing ring in the door, no dust leakage and pollution of the operating environment.
Features of Sugar Grinding Machine:
1, Crushing ability, low energy consumption, relatively small product fineness.
2, Crushing space, the turbine operation of high-intensity wind pressure generated, not only can increase production capacity and reduce the phenomenon of over-crushing, and can effectively avoid the material in the process of crushing the production of the screen deposition and blocking phenomenon.
3, Due to enhanced shear, and therefore the crushing capacity of the fibrous material than the general high-capacity equipment.
4, The installation of screen, positioning and reliable, are used plug-in. It will use life relative to the ring screen form a lot higher.
5, The host using water cooling, the whole machine with SUS304 stainless steel production, in line with GMP production requirements.
