Features

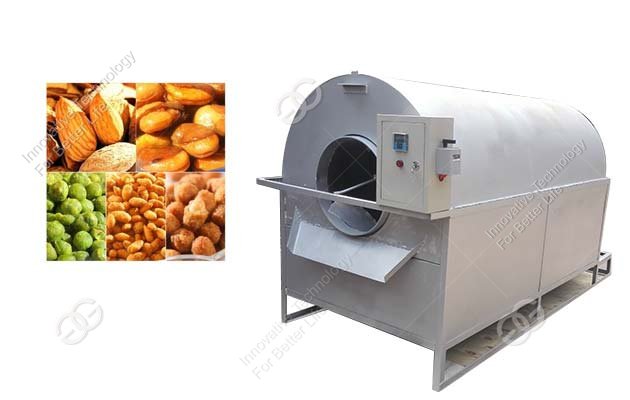

This GGJG-400 Nut Dryer and Roaster Machine is to dry or roast peanut, sesame, soybean, cacao bean, rice, grain, cashew nuts, tiger nuts, chick pea, pecan, etc.

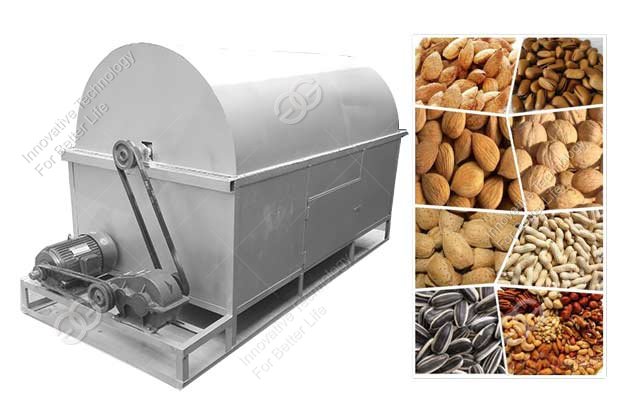

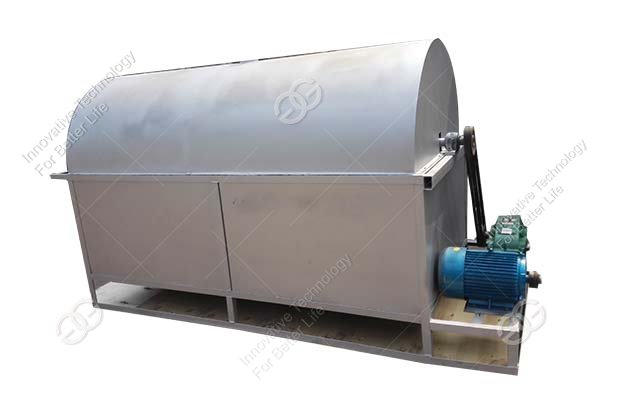

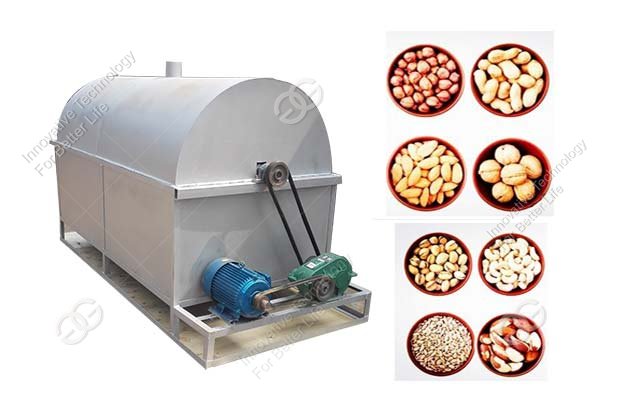

Introduction: The Roller pan mainly from the rack, hopper, barrel, block fire cover and other components, motor driven gear shaft through the belt, gear shaft drive gear on the rotating cylinder; thus continuously rotating cylinder evenly, materials steamed fried cylinder fed from the hopper. Oil seeds fully destroy cells. Add water steaming and roasting, swelling of the protein can be from inside the cells that have not been completely disrupted cells "break" the dispersion of fine droplets can be further condensed. Thereby increasing the oil yield. Full coagulation protein denaturation and harden, improve ability to withstand stress, but also conducive to fat cohesion. Practice has proved that the more complete protein denaturation, squeezing the oil yield is higher.
Advantages of this dryer and roaster machine:
1.The roasting time can set up according to client need or material. Usually 20minutes each time.
2. The heating effect is uniform. This machine can run rotatedly. Back and forth, up and down, all heating well from different direction.
3. It can large increase roasting material oil squeezing rate. Usually equipped with oil press machine.
4. Reasonable structure, low energy consumption, high efficiency, safety.
5. Low investment costs. Machine price is low, and have many models from small to large, customers can choose according to their needs.
Technical Data
Model | GGJG-140 |
Capacity | 600-800kg/h |
Frying rate | ≥98% |
Heating source | Diesel , Natural gas |
Temperature | 300℃ |
Inner wall thickness | 5-10mm |
Outside wall thickness | 1.5mm |
Power | 4kw |
Dimension | 3000*1200*1400mm |
Weight | 780kg |
