Features

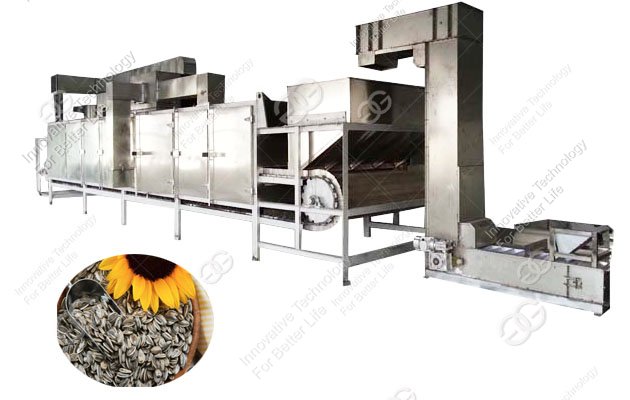

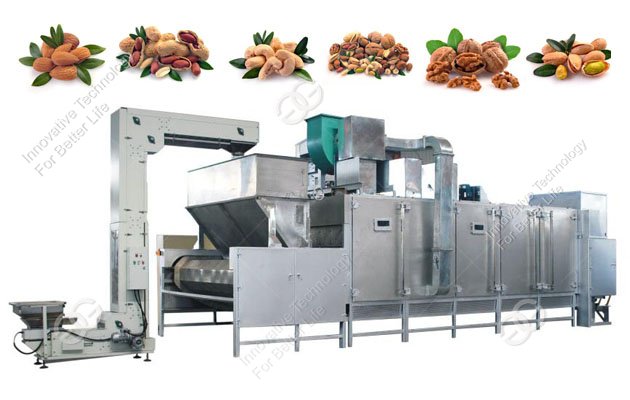

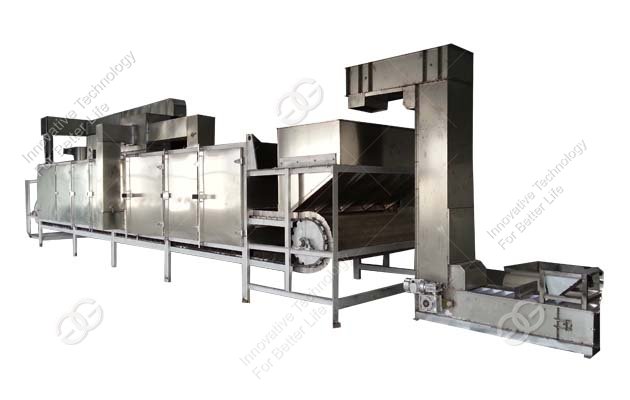

This Continuous Nut Roasting Machine is multi-purpose for processing all kinds of seeds and nuts.With stainless steel design, this nuts roasting machine is for low temperature drying and high temperature baking peanut, sesame, almond, sunflower seed, sesame seed, pecan, chickpeas, tigernuts, and other seed products, heat supply is divided into LNG and steam type. Capacities range from 300kg/h to 2000kg/h.
Originally set temperature of oven can be regulated via regulating proportional burner controller and parameter of electric steam valve at top of oven so that low temperature drying and high temperature baking can be finished.
Structure and function: multifunctional oven is composed of feeding part, baking part, cooling part, discharging part and vibrationscreen part.
Video:
Originally set temperature of oven can be regulated via regulating proportional burner controller and parameter of electric steam valve at top of oven so that low temperature drying and high temperature baking can be finished.
Structure and function: multifunctional oven is composed of feeding part, baking part, cooling part, discharging part and vibrationscreen part.
Different areas are insulated for minimum heat loss and lowest running cost.
1.It reduces the labor,improves operationg efficiency;
2.It has reasonable heat distribution design to make the airflow uniformity,thus ensure the uniform roasting resulting obtainable;
3.It has integrated cooling system to prevent the over-roasting and keep the nuts at the optimum condition.
4. It has facility designed to realize the recirculation of roasting air.hence decreases the enengy consumption.
5.Every door on both sides can be opened for easy cleaning.
6.Different areas are insulated for minimum heat loss and lowest running cost.
7. High degree of automation, thermostats, heat can be by electric, gas heating other heating methods. Using a circulating fan heat exchange to achieve strong airflow bake, bake improve efficiency, increase baking quality.
Video:
Technical Data
Model | GGP-300 | GGPR-500 | GGPR-1000 | GGCR-2000 |
Rotary Power | 10KW | 10KW | 15kw | |
Heating Power | 70KW | 115KW | 230kw | |
Raw Material Thickness | 50-60mm | 50-60mm | 50-60mm | |
Capacity | 300-400kg/h | 500kg/h | 1000kg/h | 2000KG/H |
Size of Elevator | 1500*800*2800mm | 4000*2200*2500mm | ||
Roasting Machine Size | 7500*1500*2200mm |
