Ice Cream Cones Maker Machines
Katherine /
31 Mar,2017

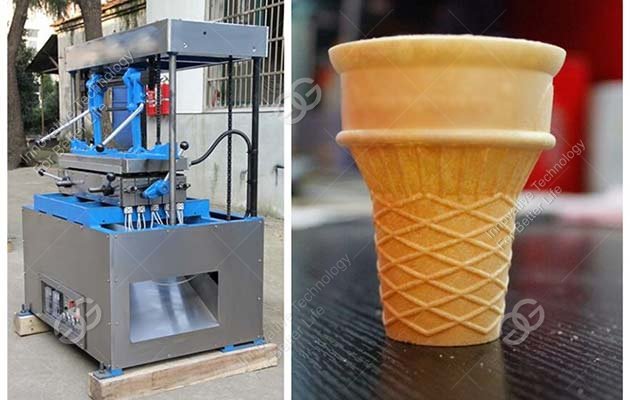

This is new type ice cream cones maker machine GG-60, with 60 mould,which can make 60 pieces of ice cream cones at one time and 1800pieces cones one hour if working continuously. The shape and sizes of the finished ice cream cones can be customized.
Operation Manual of ice cream cones maker machine GG-60
1. Flatly place the machine on the horizontal ground without tilting.
2. Connect the power supply, set the upper and lower mold temperature, and then wait for the temperature rise.
3. After the temperature rises, the upper mold is pulled up and the lower mold is closed.
4. Pour the paddle, and then press the mold down and die together, about one to two minutes later, the egg can be molded.
5. Pull the upper mold up, the lower mold opened, the egg tube will automatically fall into the following channel and slide out.
6. Repeat the above process, after the time, in time to clean up and down the mold, keep clean, and then unplug the power.
| Model | GG-60 |
| Capacity | 1800pcs/h |
| Power | 21kw |
| Voltage | 380V |
| Machine size | 1260*1140*1400mm |
| Packing size | 1350*1250*1780mm |
| Net Weight | 850kg |
| Gross Weight | 950kg |
