Air Flow Rice Popping Machine
Katherine /
12 Jul,2016

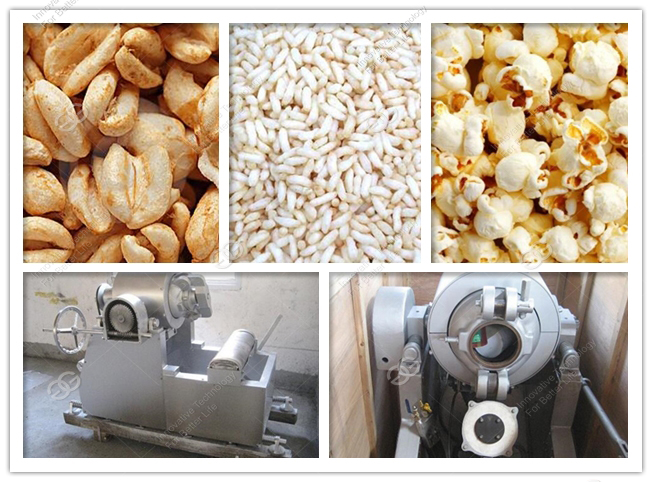

Large Air Flow Rice Popping machine or Rice Puffing Machine is a grain puffing apparatus by puffing tanks, heating device, turning device, part of several security devices, damping device, rack, chassis and other components. Is based on the traditional fire pot puffing on technological transformation is made. And traditional small stream compared to puffing tank, production increased 4-6 fold safety factor is also greatly improved, while reducing operator labor intensity, reducing energy consumption. It has been found in rice, millet, wheat, barley, buckwheat, corn, sorghum, barley, buckwheat, beans and so long as the starch-containing material can be extruded.
Working Process: A certain amount of material put into the lid sealed steel tank body, the use of liquefied petroleum gas, coal gas or heating, and to a certain constant rotation speed of the tank, so that the material evenly heated, with the heating tank the temperature gradually increased, reaching more than 100 ℃, the surface material will escape the body of water and vaporized a certain pressure in the tank. When the material was charged with a moisture of about 5% to 8%, the pressure inside the tank will reach 0.8 ~ 1.25Mpa (different materials different pressure). At this time the material has been basically matured in the tank if the tank lid burst open by the sudden release of high temperature and pressure state down to room temperature and pressure, the material will be filled by the loss of the position of the air becomes larger, its structure changes, raw starch (β- starch) matured starch (α- starch), volume enlarged several times to ten times. That moment of instantaneous release bulging from the extruder outlet stream and the material and at the same time dramatically tearing the air, producing a loud noise, the sound of around 100 decibels.
Advantages of Air Flow Rice Popping Machine:
★ Large Output: We have 3 models, 40-50kg/h,60-80kg/h and 90-120kg/h for your selection.
★ Wide applications: rice, corn, wheat, barley, buckwheat, soybeans, black beans, whole grains, etc.
★ Labor saving: a skilled worker operably three, saving 20-30% than other stores machine
★ Double stove shorter heating time: 6 minutes once puffed corn
★ Safe and convenient operation: four security insurance, provincial monitoring, reduce labor intensity, user-friendly design, the workers easily operate.
★ Collect material more convenient, tilted 35 degrees to collect bits of material ejected
★ Low noise,small puffing sound.
How to identify the manufacturer of large air flow popping or puffing machine?
1. Whether the manufacturer with production conditions, production equipment, design and manufacturing capabilities for new product development, product testing facilities (gas, liquid) are complete, the state can provide equipment relevant test reports, and production those related qualification documents, all of which must come visit, it is necessary to obtain a permit formalities you.
2. Expanded including whether the tank body ears disposable cast molding, casting molten steel is not a one-time security can not be guaranteed; if it is welded iron plates, it does not have any security, can not puffed wheat and other long-term pressure of the material .
3. Extruder damping system is critical. Some manufacturers to cut corners in the bottom of the device makes damping guide means, do not protect the host, pressure gauges and other parts of the action. Some manufacturers in the surface of the device is only an ordinary spray paints, materials waste materials such as old steel, old motor.
4. What is the manufacturer's commitment to after-sales service and warranty content with time to ensure that, if the business license of the legal representative and the person in charge of the company's identity is not consistent, and place of business license registration area is inconsistent, or place of registration of private houses, or simply placed in the office without its own prototype manufacturing workshop, its commitment to quality products and after-sales service is to be discounted.
