Features

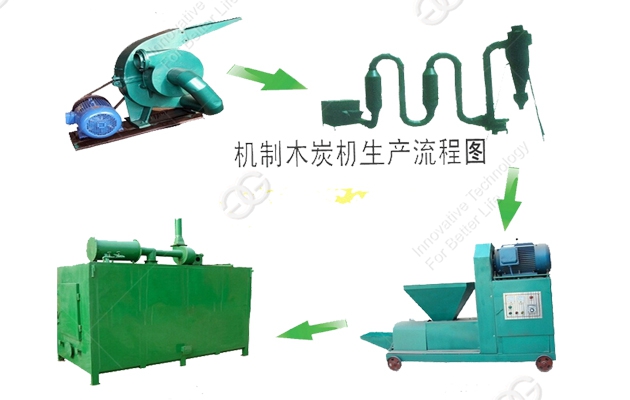

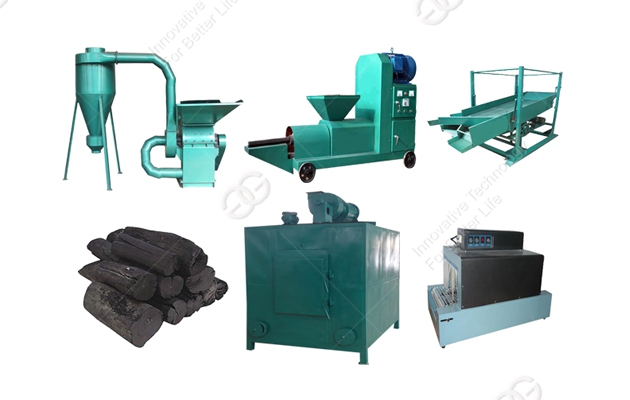

Instructions of Automatic Charcoal Production line:
1. Sawdust Crusher
Sawdust crusher can crush many kinds wood-waste The whole production line can help you make the materials into the excellent wood fibers, flour and sawdust directly, save energy, high efficiency, easy operation and maintenance,etc.
2.Dryer
This Air Current Type dryer can reduce the humidity of wood materials below 12% per time. The Cost of this Air Current dryer is much lower than Rotary dryer. It is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintenance, etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.
3.Briquette Machine
Features of Sawdust Briquette Machine:
Stick shape with different diameter,Production moisture is 8-12%,With higher capacity and lower energy consumption.
4.Carbonization furnace
Advantages of Carbonization furnace
Save the labor and energy.Operation is easy, one person can operate 3-5 set carbonization stove.Continuous operation, can working 24 hours continuously.
5.Packing machine:
Infrared Contraction Packing Machine is an advanced packing machine in the market now. It adopts infrared quartz pipe to heat the packing material. So it can efficiently save the electric power. The contraction temperature and transmission speed are adjustable. Adopt infrared quartz heating tube and air circulation heating, uniform shrinkage, stable and reliable performance, good effect packaging,convenient operation and maintenance, apply to the floor, cans, glass, beer, mineral water, etc in PE or PVC shrinkable packaging. biomass charcoal briquette production line.
Technical Data
Crushing Machine | Model | GGF-2 |
Capacity | 700-800 kg/h | |
Material Size | ≤200 mm | |
Motor | 11 kw | |
Size | 1250*700*2000 mm | |
Weight | 400kg | |
Vibrating Screen | Model | GG-2 |
Screen size | 500*1500 mm | |
Grit size | 3-4 mm | |
Motor | 0.8 KW | |
Output | 5-6 T/H | |
Dimension | 2640*808*848 mm | |
Sawdust Dryer Machine | Model | GGH-1 |
Capacity | 400-650 kg/h | |
Temperature of heating air | 180℃-250℃ | |
diameter of feed in(mm) | ≦5 | |
Motor power | 4kw | |
Sawdust Briquetting Machine | Model | LGZB-1 |
Capacity | 160-200kg/h | |
Motor | 11 kw | |
Briquette’s diameter (mm) | 40mm-60mm | |
Dimension (mm) | 1700*660*1300 | |
Carbonizing Stove | Model | GGTH-20 |
Power | 1.5kw | |
Capacity | 1T | |
Furance temperature | 450℃ | |
Size | 2300×1600×2000mm |
