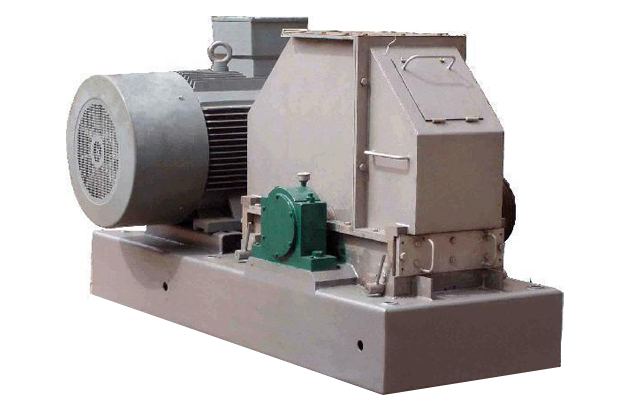

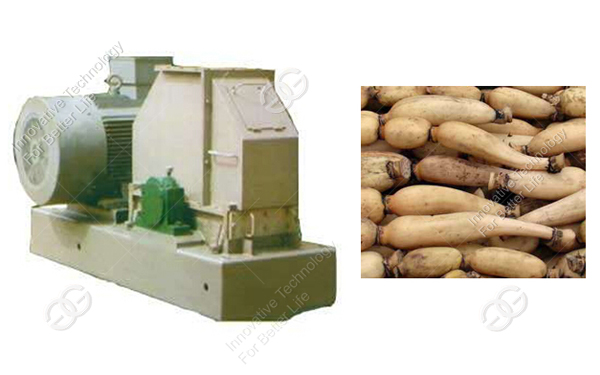

Cassava Starch Rasping Machinery

  • MOQ:1Set/Sets
  • Brand:GELGOOG MACHINERY
  • Certification:CE
  • Supply Ability:100Sets/Per Month
  • Pay Method:WEST UNION L/C T/T CASH
  • Warranty Time:12 Months
  • Loading Port:Qingdao Port/Shanghai Port,China
  • Country Of Origin:China
Leave message for free quotation.
*Please enter the numbers in the picture validate
Features
Introduction:
Rasping  Machinery included in the total production line of cassava starch, is easy to operate; Large volume, so working efficiency is high; Low energy consumption; Can work constantly; Long life span; The brush roller is processed specially, so is more endurable.

The rotary speed is very high to ensures maximum efficiency.

The high efficient and simple clamping bars make sure the blades working on optimum position. The blades can be easily replaced by unskilled workers.No special tool is needed.

All parts contacting with the product are made of stainless steel.
1. Europe advanced design concepts, do not need special tools can discharged clamper of saw balde, simple operation, handling and rapid;
2. High-intensity  roller of rasper, special materials, in high-speed, heavy-duty not under deformation and ensure production safety;  Adopt international advanced high precision cutting  line to  gutter of roll to ensure that every dimension of precision;
3. High-speed rotation, the line speed of more than 96 m / s, broken cell completely and could fully extract useful components without waste;  Removable  sieve plate, easily cleaned to ensure that the best materials through rate;
Technical Data
Model Conversion
Width(mm)
Conversion
Diameter(mm)
Supporting
Power(kw)
Sweer Potato
Processing Capacity(t/h)
Potato Starch
Processing Capacity(t/h)
Lotus Starch
Processing Capacity(t/h)
GG-400*260 260 400 11.0~22.0 2 3 2
GG-500*260 260 500 22.0~30.0 3 4 3
GG-500*300 300 500 30.0~37.0 5 6 5
GG-600*300 300 600 30.0~37.0 6 8 6
GG-600*360 360 600 30.0~45.0 8 10 8
GG-600*400 400 600 45.0~55.0 10 12 10
GG-700*360 360 700 55.0~75.0 12 15 12
GG-700*400 400 700 75.0~90.0 15 18 15
GG-700*450 450 700 75.0~110.0 18 20 18
GG-840*360 360 840 90.0~110.0 20 22 20
