Features
Cereal Bar Production Line is suitable to make cereal bar / peanuts bar, caramel treats, sesame plate and other product made of granule materials. The raw material can be rice, millet, wheat, highland barley, maize, broomcorn, Chinese pearl barley, buckwheat, etc, and berries such as goji, raisins, cashew, nuts could be also be added.
☆ Controlled by PLC and touch screen to realize easy operation and setting;
☆ Equipped with Mixer to mix the materials and reduce the labor cost;
☆ Material Hopper has heater to keep materials temperature;
☆ Continuous production without any stop or pause even at cutting procedure, thus could increase the production efficiency;
☆ Patented design with completely new appearance;
☆ Completely settle the problem that the nuts bar cannot be 100% cut separately.
♦ The Automatic Cereal Bar Production Line consists of heating and stirring, reciprocating platen, Semi-automatic cuts composition, with simple operation, stir the finished size, weight consistent.
Far infrared heating, nonstick sides of casks, Stir Evenly, nonstick pot.
♦ Automatic control reciprocating motion, the average level.
♦ Automatic dicer, a molding, product size, weight consistent.

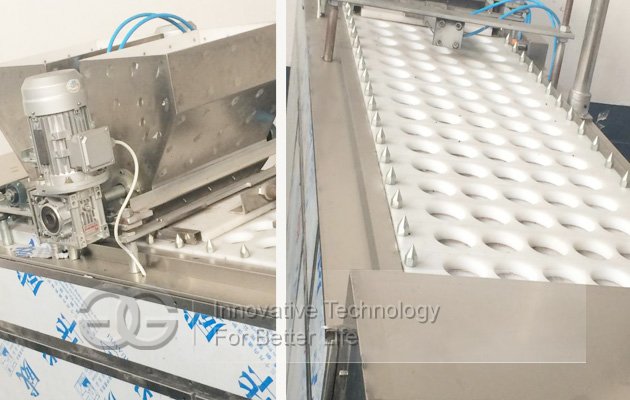

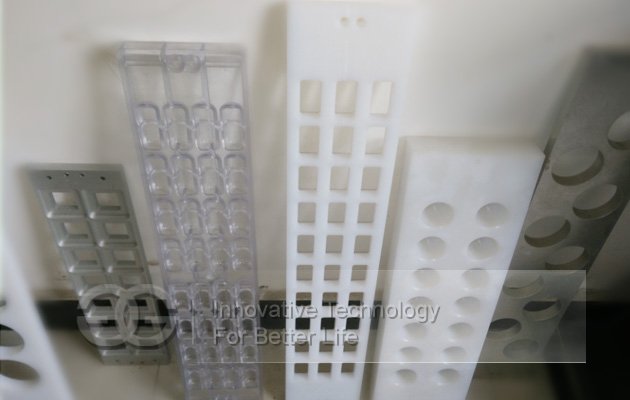

Cereal Bar Molding Machine Mould:
Cereal Bar Molding Machine Mould:

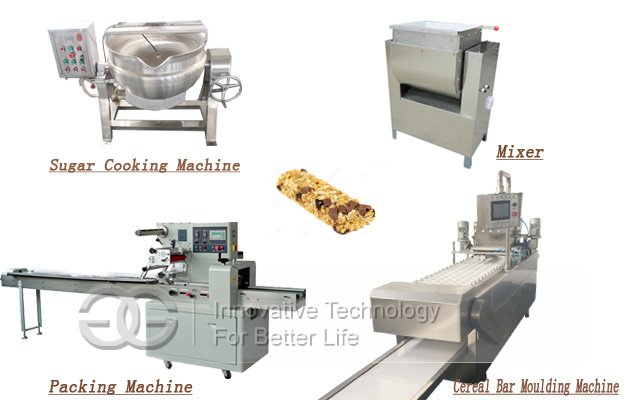

Technical Data
| Name | Model | Power(kw) | Capacity(kg/h) | Size(mm) |

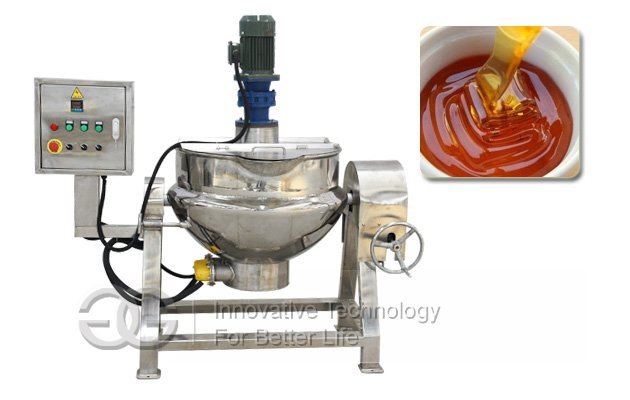

| Sugar Cooking Machine | GG-100 | 12 | 50/100 | 1320*970*960 |
| Mixer | GG-650W | 4.1 | 12-20Kg/time | 800*1650*1600 |
| Cereal Bar Moulding Machine | GGTD56 | 3.3 | 100-120 | 3000*960*1360 |
| Packing Machine | GGFK-280 | 2.4 | 50 | 3770*670*1450 |
