Factory Directly Sale Wooden Toothpick Production Line
Katherine /
10 May,2017
Our customer from thailand bought our wood toothpick making production line at the beginning of this month from our Henan Gelgoog Machinery Co.,LTD.Our customer's factory has plenty of raw material:birch, basswood, cypress.Below is out wood toothpick making line's detailed informations:
Introduction:

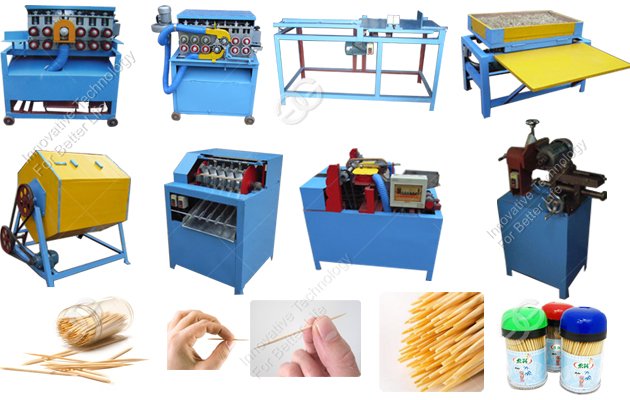

The total set of wood toothpick making machines includes Wood lamination machine,Wood filament machine, wood filament set-size machine,Toothpick set-size machine, Toothpick polisher,Toothpick ordering machine,Toothpick sharpener, Multipurpose sharpener, totally 8 units of machines, used for making toothpicks from wood.

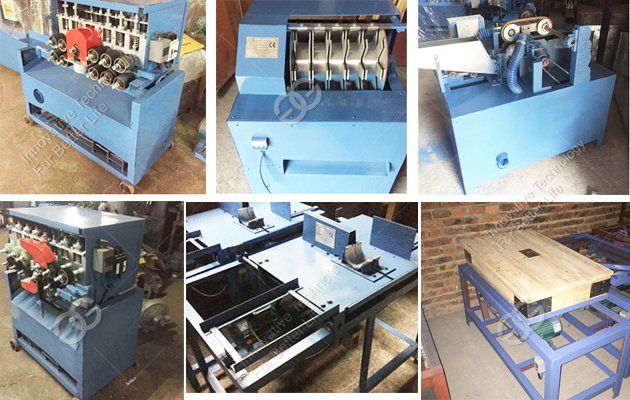

More Pictures:
Advantages:
Advantages:
This set of wood toothpick making machines need 4-6 workers to operate.
The size of the finished toothpicks can be with diameter 2.2 mm and the length 65mm, the minimun capacity is 500000 pcs/8 hours.
The capacity can be customized, if to replace the #7 machine with GG - 642 sharpening machine, the output can be 600000 pieces/ 8 hours.Increase the GG - 642 machine 4units, the production can be 3 million/8hours.
Need to preprocess the wood into 140/105/70/30cm length,6cm width and 3.5cm thickness firstly.
The production process:
Raw material(wood) - shard - into silk - (poor color appropriate to bleaching, drying) length cut - polishing - remove the defect to sign - cutting cutting flower, remove the defect sign, packing, warehousing (factory)
Technical data:
Working video:
The production process:
Raw material(wood) - shard - into silk - (poor color appropriate to bleaching, drying) length cut - polishing - remove the defect to sign - cutting cutting flower, remove the defect sign, packing, warehousing (factory)
Technical data:
| No | Name |
Power (kw) |
Size (cm) |
Weight (kg) |
| 1 | Wood lamination machine |
0.55 7.5 0.37 |
115*60*110 | 360 |
| 2 | wood filament machine |
0.55 3.0*2 0.18 |
110*65*110 | 380 |
| 3 | wood filament set-size machine | 0.75 | 140*66*88 | 80 |
| 4 | Toothpick set-size machine |
3.0 0.37 |
85*65*90 | 125 |
| 5 | Toothpick polisher | 1.1 | 130*110*130 | 130 |
| 6 | Toothpick ordering machine | 0.55 | 100*100*75 | 80 |
| 7 | Toothpick sharpener |
0.75*2 0.37 0.12 |
105*65*95 | 210 |
| 8 | Multipurpose sharpener | 0.37 | 75*50*85 | 65 |
| Total | 23.28 | 6.6m³ | 1430 | |
Working video:
