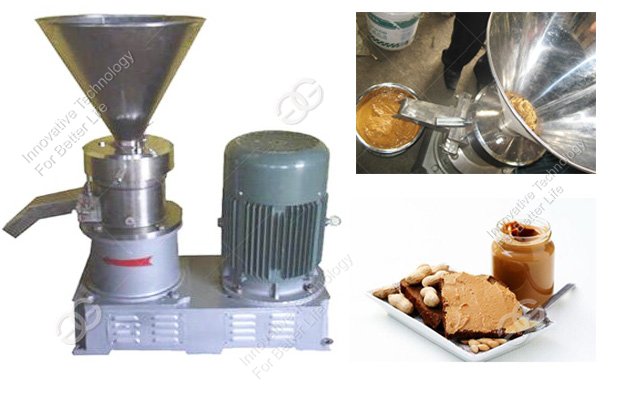

Peanut Grinder For Making Peanut Butter

Peanut Grinder is mainly used for grinding roasted peanut, sesame, almond, walnut, chili, fruit,etc to make different kinds of sauces. It is multi-purpose, which can also be used to grind bones,meat, and garlic, ginger.Colloid peanut grinding machine is consisted of the feeding part the grinding heas,the base driving and electromotor, and the materials can be both carbon steel and stainless steel.

This peanut grinder machine is available for wet processing, not available for dry processing.Materials should be removed before grinding debris, the size of material is less than 1 mm, the hardness of the material shall not be higher than HV309, is strictly prohibited iron and gravel particles into the grinding hard objects, to prevent damage to the machine.

Disassembly of the stator assembly (note that stator assemblies 1, 2, and 3 must not decompose). Remove the hopper to remove the tap, remove the cap screw, remove the dial, handle, counterclockwise rotation to remove the big chuck, lift up the grinding head cover to remove the stator assembly. Removal of the rotor assembly (Please note that the rotor assembly one, two rotor absolutely can not be decomposed). After the stator is raised, remove the discharge port and unscrew the left-hand screw to remove the rotor and impeller.

The assembly of the rotor and the stator can be carried out in the reverse order of the above, and each part should be cleaned before assembling. Installation, the need for the contact surface and threaded parts of the lubricating oil to meet the requirements after assembly.
