Looking For Ice Cones Maker Machine?
Katherine /
14 Oct,2016

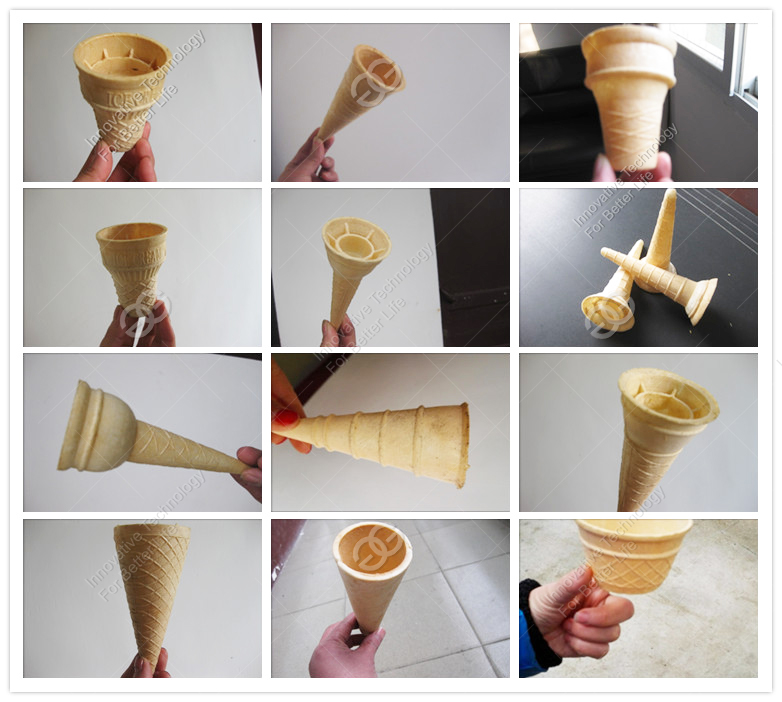

Ice Cream Cone Maker Machine GG-32C with user-friendly design, simple operation. This machine is divided into the upper die and lower die, when using through the temperature control knob, the temperature first tune up, the temperature rose up after the upper die to pull up and lower mold together and pour into pastes, and then on the molding under the mold close, the ice cream cone maker machine was about one or two minutes later, the cone can shape, the upper die to pull up under the mold opened, and the cone will automatically fall into the following and slide channel. This machine is the corollary equipment of ice cream making machine, which can be changed moulds to make different shapes of cones.
Frame: Department with profiles welded frame. There are panel, carrying molds and operating machianism on the top; there is the electrical box down. Surrounding covered with steel plates, there is the slide to facilitate the cone slipped out.
Mould: Composed by upper and lower molds. Installed the corn head on the upper corresponding to the upper level is set on the panel. Divided into two lower mold by midline .The front one is fixed mold, fastened to the panel by means of screws, determining the position of the mold; another one is the dynamic simulation, can able to manipulate its traverse, closed the upper and lower molds, the core and the die orifice to form a particular cavity, if implant the flout pulp, it will be press into the cone. Open the upper mold, separate the lower mold, the cone will be slip out from the slide.
There are two oblong holes in the mold, installed the heater in it, and were tight with screws, and heating when electrify, is the heat source for roasted the cone. Dynamic model consists of two connecting rod and the traction mechanism is connected to the central panel. Plate bending the ball moving on the right handle, make opening and closing of the movable mold retreat. Right below has an adjustable height rod bolt, when the lower mold fold, lower rod in contact with the top surface of the bolt as positioning purposes. Rod must overcome dead spots and then press down 2-3mm,called "clamping" ,by adjusting bolt height to get. Block the punch with a traction, the joint bolts connected with rotating arm. Grip the opening and closing handle of upper mold up turn ,still to the belted joints touch with the beam ,then the upper mold is hoisted the highest point, on the contrary is clamping. The upper and lower mold clamping ,can be adjusted the degree of lock by the screw of tumbler.
Electrical Equipment: Actuator in the mold ,control elements are concentrated in the electrical box installed. Installed two units temp of the upper and lower molds. more than that, it can keep the set temp automatically. Turn button right, heater is energized ,the arrows on the heating. When the mold reaches the set temperature, the lamp is off, then can baked the cone.
