Features
Introduction:

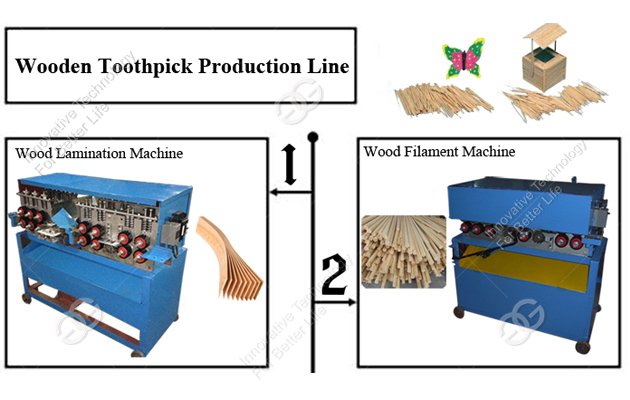

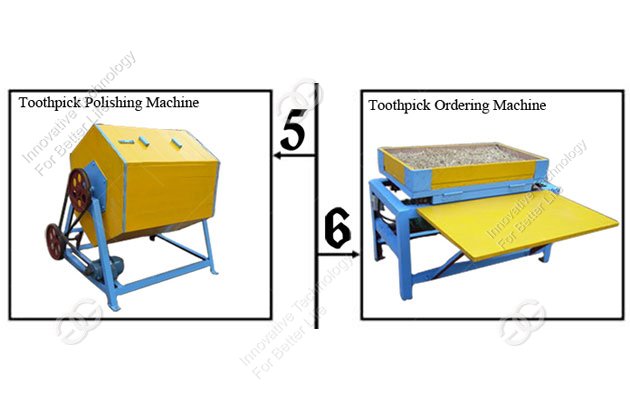

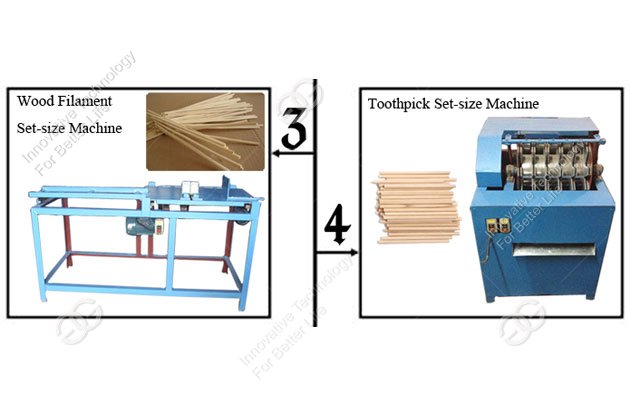

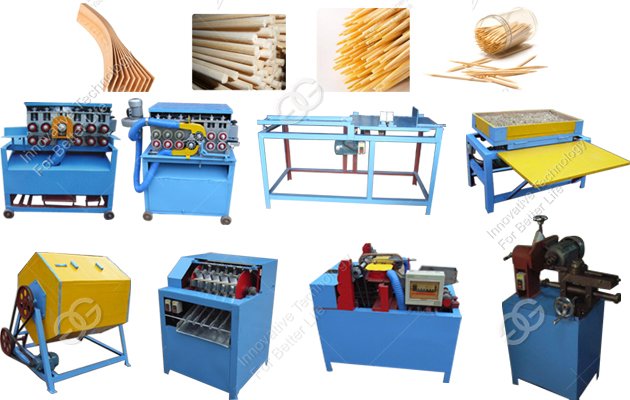

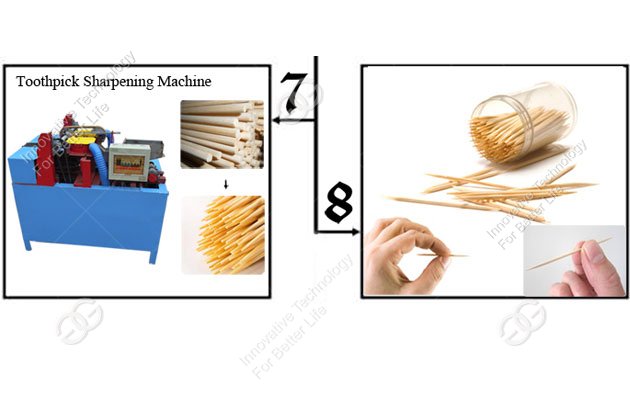

The total set of wood toothpick making machines includes Wood lamination machine,Wood filament machine, wood filament set-size machine,Toothpick set-size machine, Toothpick polisher,Toothpick ordering machine,Toothpick sharpener, Multipurpose sharpener, totally 8 units of machines, used for making toothpicks from wood.
Advantages:
The total set of wood toothpick making machines includes Wood lamination machine,Wood filament machine, wood filament set-size machine,Toothpick set-size machine, Toothpick polisher,Toothpick ordering machine,Toothpick sharpener, Multipurpose sharpener, totally 8 units of machines, used for making toothpicks from wood.
Advantages:
This set of wood toothpick making machines need 4-6 workers to operate.
The size of the finished toothpicks can be with diameter 2.2 mm and the length 65mm, the minimun capacity is 500000 pcs/8 hours.
The capacity can be customized, if to replace the #7 machine with LG - 642 sharpening machine, the output can be 600000 pieces/ 8 hours.Increase the LG - 642 machine 4units, the production can be 3 million/8hours.
Need to preprocess the wood into 140/105/70/30cm length,6cm width and 3.5cm thickness firstly.
The Production Process:
The Production Process:
Raw material(wood) - shard - into silk - (poor color appropriate to bleaching, drying) length cut - polishing - remove the defect to sign - cutting cutting flower, remove the defect sign, packing, warehousing (factory)

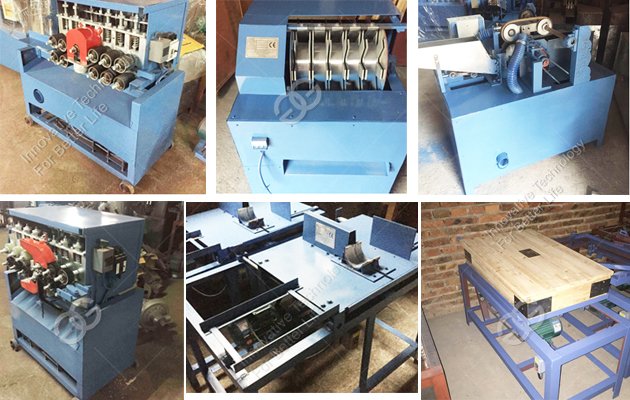

More Pictures:
Related Products:Bamboo Toothpick Machine
More Pictures:
Related Products:Bamboo Toothpick Machine
Technical Data
No | Model | Name |
Power (kw) |
Size(cm) |
Weight (kg) |
1 | GG278 | Wood lamination machine |
0.55 7.5 0.37 |
115*60*110 | 360 |
2 | GG142 | wood filament machine |
0.55 3.0*2 0.18 |
110*65*110 | 380 |
3 | GG741 | wood filament set-size machine | 0.75 | 140*66*88 | 80 |
4 | GG746 | Toothpick set-size machine |
3.0 0.37 |
85*65*90 | 125 |
5 | GG516 | Toothpick polisher | 1.1 | 130*110*130 | 130 |
6 | GG948 | Toothpick ordering machine | 0.55 | 100*100*75 | 80 |
7 | GG641 | Toothpick sharpener |
0.75*2 0.37 0.12 |
105*65*95 | 210 |
8 | GG803 | Multipurpose sharpener | 0.37 | 75*50*85 | 65 |
Total | 23.28 | 6.6m³ | 1430 |
