Features
Introduction:

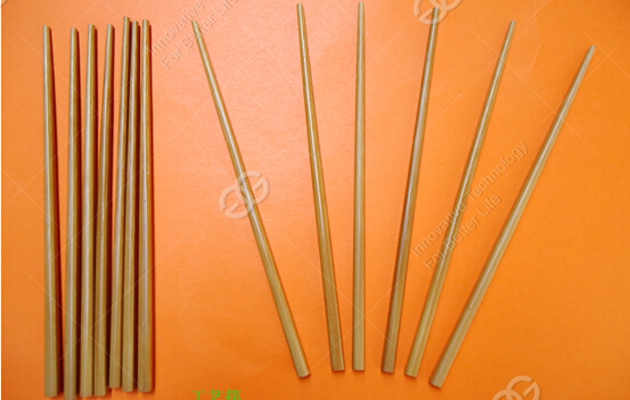

Wooden Chopsticks Making Machine Line is used to make wood chopsticks from wood boards.The various types of available round timber , square timber sand small wood shall be process into the dryer square wood board length of 500mm , width of 60mm, thickness of 32-34mm , which can be used to make the chopsticks by our machine line , then you can put the materials of wood board of length:500mm width 60mm thickness 32-34mm into our following 1 to 5 machines to process into chopsticks.The usual chopstick size is: diameter of 5.5mm length less than: 240mm, and also we can make the chopstick according the size client requirements.

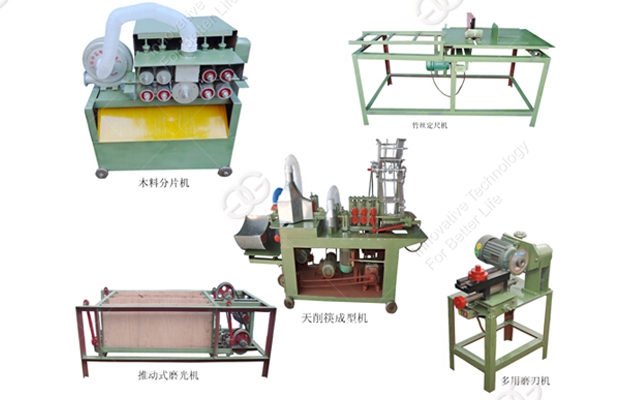

Production process: wood dissection machine →wood set-size machine→wood chopsticks shaping machine →chopsticks sharpen machine → polishing machine→knife sharpening machine→ chopsticks packing machine
Advantages:
1.The whole chopsticks making machine line with capacity 100,000 pairs per 8 hours,needs 3-4 workers.
2.One M3 raw wood can make 55,000 pairs chopsticks(dia 5.0mm,210mm length).
3. Multi functional. The production line can make square incense stick, round incense stick, bamboo round chopstick, bamboo stick.
4. As to the incense stick, it can produce the many kinds of diameters of stick as your demands.
5.High efficient and save manual labour, the entire line just needs 3-4 persons.
6.Our machines can use the leftover materials from Wooden furniture factory and Wooden crafts factory or undersized tree to produce different specification round chopsticks.
Technical Data
| NO. | Name | Power(kw) | Size(cm) | Weight(kg) |

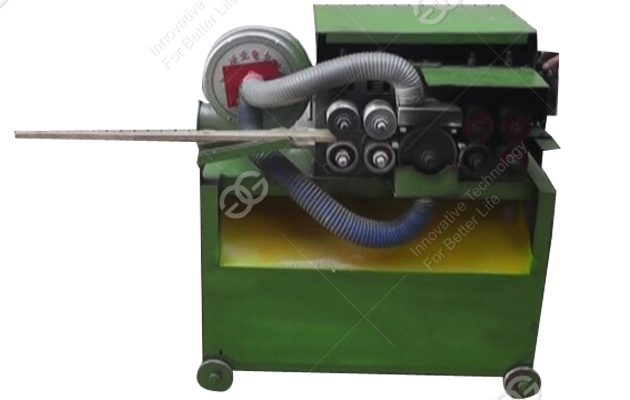

| GG1 | Timber Slicer |
0.55 5.5 0.37 |
115×60×110 | 360 |

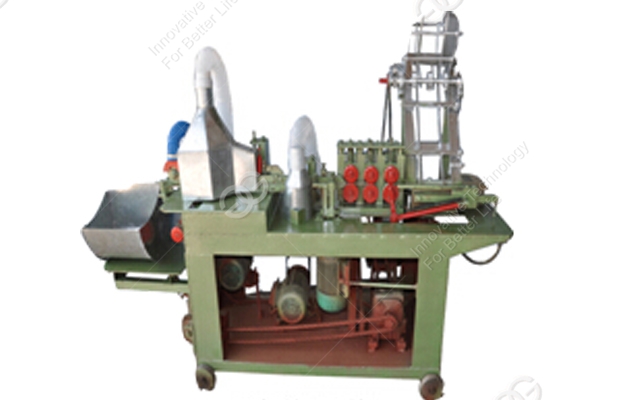

| GG2 | Wood-wool Sharpener Former |
1.1 3.0×2 0.18 |
110×65×110 | 380 |
| GG3 | Wood-wool set-size machine | 0.75 | 140×66×88 | 80 |

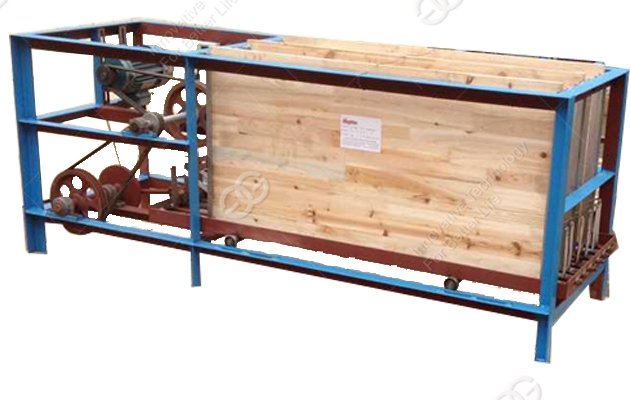

| GG4 | Polisher | 2.2 | 215×100×85 | 300 |
| GG5 | Round Chopstick Head sharpener |
0.55 0.37 1.1 |
145×88×105 | 280 |

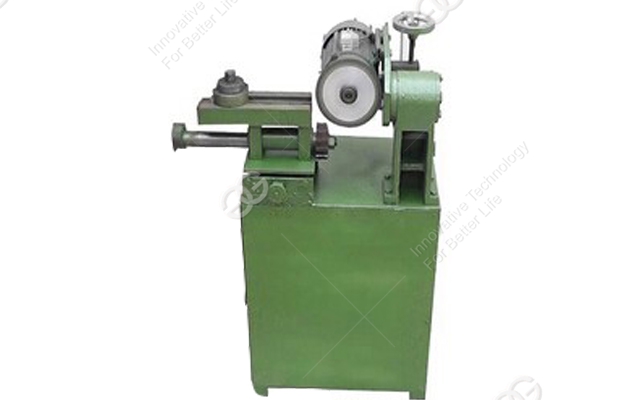

| GG6 | Multifunctional blade sharpener | 0.37 | 75×50×95 | 65 |
