Features

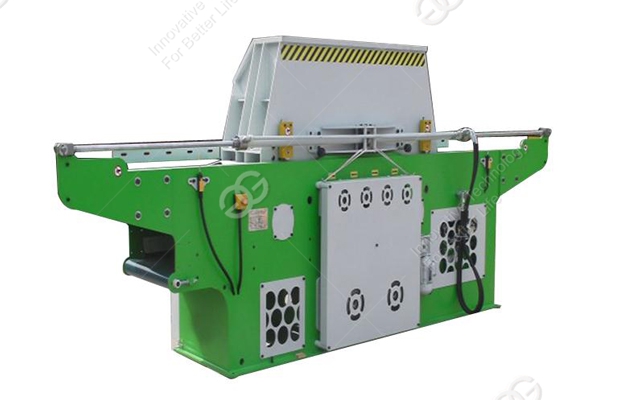

Introduction: Wood Shaving machine is a new type wood shaving machine in wood working machinery, can process sticks, twigs, branches, logs and so on. Besides, It also can be used for the development of producing some raw materials, such as mushroom, shaving board, high density board, charcoal, etc. Mainly used for mass production of flakes with uniform thickness. The final product can be used as material of particleboard and paper pulp,and also used as bed for animals, such as pigs, cattle, sheep and horse, biomass energy as well.
Inlet adopts automatic feeding device, the material comet into the machine through the feeding port , after the blade section in the interior of the machine, and then enter the screen. Finally it will produce uniform particle size, the thickness can be adjusted automatically.
This machine adopts automatic feeding device, compared with the traditional simple operation, greatly increase the particle production rate, save labour power and time.
Advantages:
1.Automatic feeding equipment, greatly improve the production speed, it also saves time and manpower
2.Simple operation, high productivity; compact structure, convenient maintenance
3.Energy-saving, small investment, good economic benefits
4.High quality blade, long service life, cost saving
5.Shaving wood size can be adjusting by yourself, meet customer different requirements, high efficiency and high quality
6.Energy can be alternative of electric and diesel, meet the needs of customers of different countries and regions
7.Machine can work continuously and shorten work time, improve work efficiency and create more business value
8.Widely application, can processing logs, branches, edge into shavings, high speed, low loss rate.
Technical Data
| Model | GG |
| Length of material (cm) | 140 |
| Diameter of material(cm) | 45 |
| Cutting head(pieces) | 4 |
| Blades(pieces) | 6 |
| Rotated speed(r/min) | 4500 |
| Diameter (mm) | 140 |
| Power (kw) | 37 |
| Thickness of finished shaving (mm) | 0.5-5 |
| Route of hopper(mm) | 2200 |
| Material feeding speed(m/min) | 6-15 |
| Dimension(W×L×H)(cm) | 115×515×180 |
| Weight(kg) | 2850 |
