Features
Usage:The full-automatic electric type wafer production line have 15 moulds,professional produce the wafer with different size.
Feature:
Fully automatic,lower power consumption electric,advanced structure,
Fully automatic,lower power consumption electric,advanced structure,
Introduction:
Adopting hearing-medium conduction technology with heating oil as medium,the plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.
If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits.

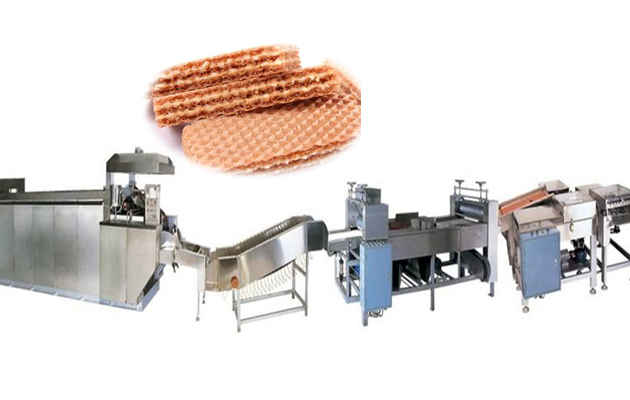

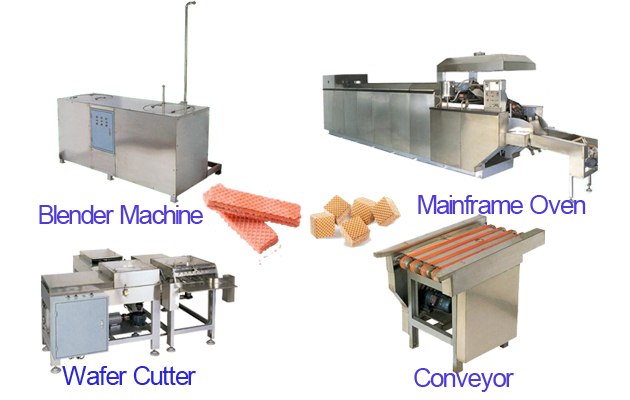

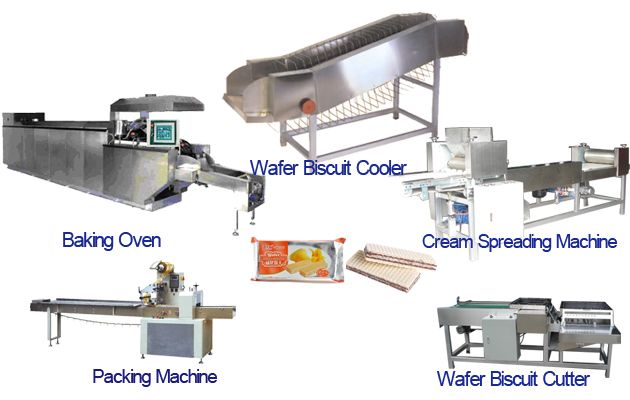

The plant mainly consists of mixing system,automatic feeding system, tunnel-type oven, sheet feeding and cooling device,coating machine,cutter and organic heating medium boiler, etc.
With compact structure and unique reliability, the plant is one of the most preferred equipment in foodstuff industry.
If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits.
The plant mainly consists of mixing system,automatic feeding system, tunnel-type oven, sheet feeding and cooling device,coating machine,cutter and organic heating medium boiler, etc.
With compact structure and unique reliability, the plant is one of the most preferred equipment in foodstuff industry.
Technical Data
Model | GGDL-15-1 |
Moulds quantity | 15 |
Moulds size | 470*325*25mm |
Size of wafer stripe | 3.0*3.0*0.5 |
Wafer thickness | 2.0-3.0mm |
Baking time | 95~120 seconds(the thickness of wafer<2.5mm) |
Capacity | 560 pieces/h(the thickness of wafer:2.3mm) |
Component materials in contact with food | 304 # stainless steel or cast iron |
Average Power | 1.5kw |
Voltage | 3-phase,380V,50 Hz |
Gas consumption | About 40m3/h |
Dimension | 3260*1560*2320mm |
Weight | 5700kg |
