Features

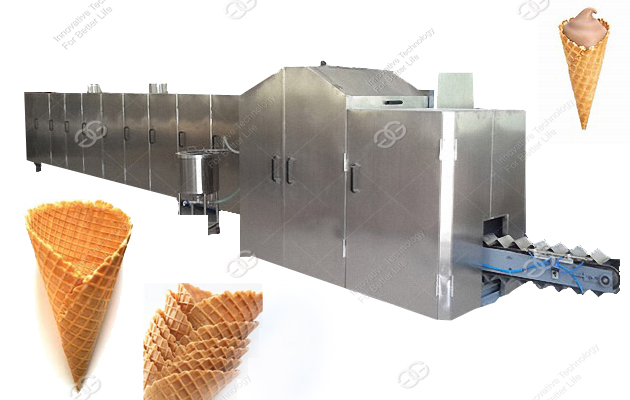

Introduction of Full Automatic Waffle Cone Making Machine Model M
There are two pieces of wafers on each baking plate.It can make the cones from 60mm to 110mm.
And we can design and make other models and specifications according to the different requirements from the client.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
Features:

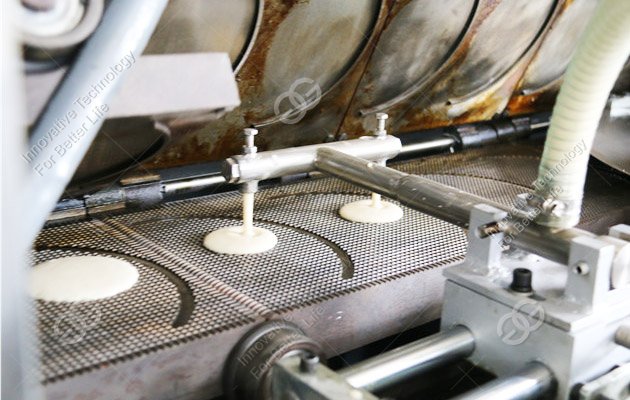

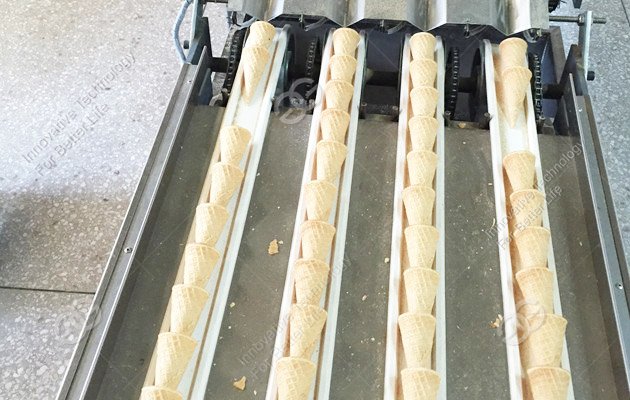

1.Full automatic filling paste,baking,rolling and conveying-cooling-counting.
2.The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
3.Different size,angle,thickness,depth ice cream cone can be customized.
4.Electric heating and gas heating can be choose.
Technical Data
| Model |
Machine Measurement |
Drive Motor | Rolling System Motor | Air Blower |
Gas Consumption (kg/h) |
Producing Capacity |
Total Weight |
| GG61*2-24M | 8.86*1.9*1.65 | 380V,1.5KW | 380V,0.37KW | 380V,1.5KW | 9-11 | 6600-7000 | 5000 |
| GG53*2-24M | 7.9*1.9*1.65 | 380V,1.5KW | 380V,0.37KW | 380V,1.5KW | 7-9 | 6600-7000 | 4600 |
| GG45*2-16M | 7.1*1.9*1.65 | 380V,1.5KW | 380V,0.37KW | 380V,1.5KW | 6-7 | 4600-5000 | 4000 |
| GG37*2-16M | 6.1*1.9*1.65 | 380V,1.5KW | 380V,0.37KW | 380V,1.5KW | 5-6 | 3600-4000 | 3600 |
