Features

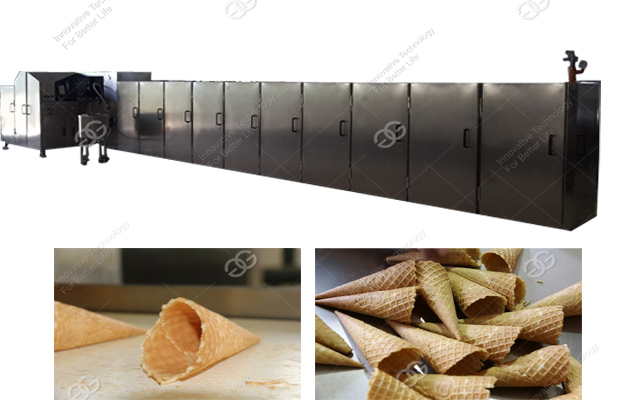

Introduction Full Automatic Ice Cream Cone production line -A
There are two pieces of wafers on each baking plate. It can make the cones within145mm long, not include the angle, weight, thickness, figure and depth of the crisp bowl.
And we can design and make other models and specifications according to the different requirements from the client.
Video:
Video:
Features of Full Automatic Ice Cream Cone production line -A

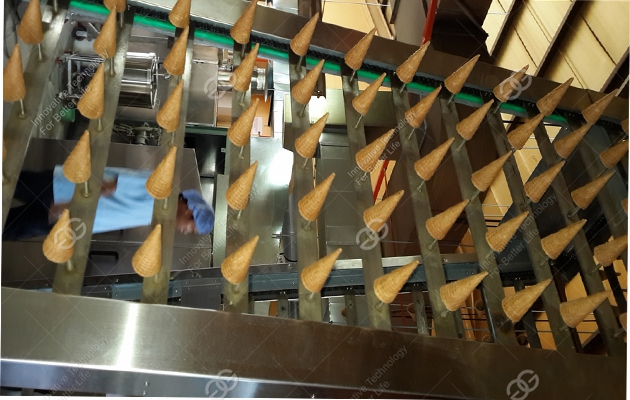

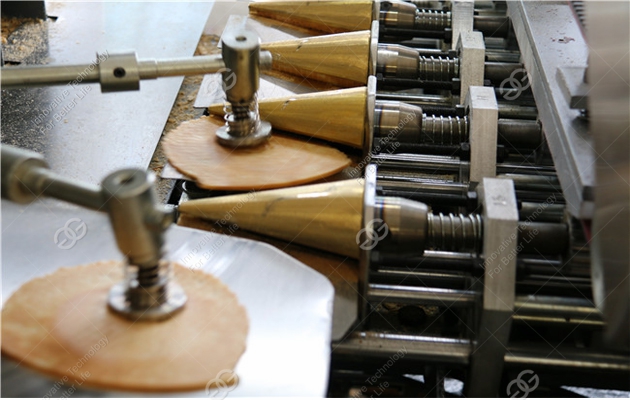

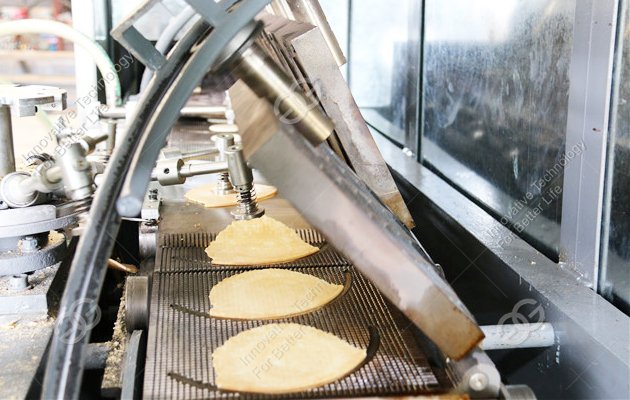

Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
Cone size within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choose.
Related Products: Ice Cream Cone Production Line Model B
Related Products: Ice Cream Cone Production Line Model B
Technical Data
Model | Dimension | Drive Motor | Rolling System Motor | Air Blower | Gas Consumption | Capacity | Total Weight |
GG75*2-30A | 13.52*1.9*1.73 | 2.2KW | 0.37KW | 2.2KW | 12-15kg/h | 7500-8000pcs/h | 7200kg |
GG61*2-24A | 11.32*1.9*1.73 | 1.5KW | 0.37KW | 1.5KW | 10-12kg/h | 6500-7000pcs/h | 5800kg |
GG53*2-20A | 9.8*1.9*1.73 | 1.5KW | 0.37KW | 1.5KW | 8-10kg/h | 5500-6000pcs/h | 5300kg |
GG45*2-16A | 8.52*1.9*1.73 | 1.5KW | 0.37KW | 1.1KW | 6-7kg/h | 4500-5000pcs/h | 4800kg |
GG37*2-16A | 7.05*1.9*1.73 | 1.5KW | 0.37KW | 1.1KW | 5-7kg/h | 3500-4000pcs/h | 4200kg |
