Features

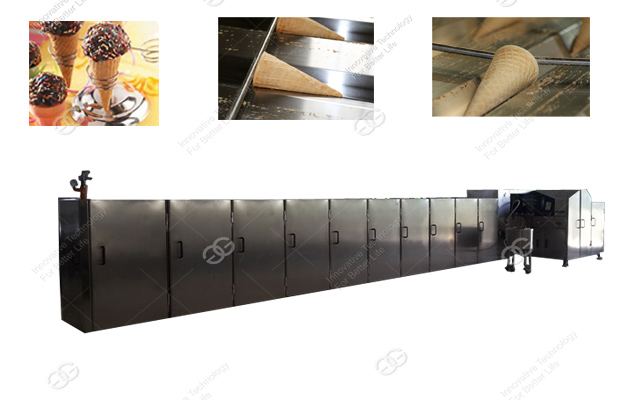

Crisp Cone Making Machine Model B: There is one piece of waffle each baking plate.It can make the cones within 185mm long.
And we can design and make other models and specifications according to the different requirements from the client.
Feature of Full Automatic Crisp Cone Making Machine:

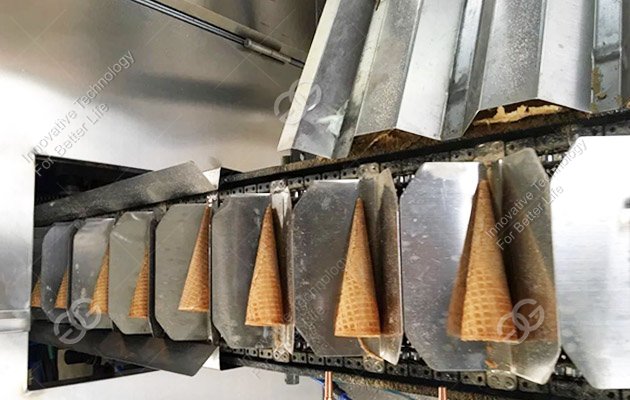

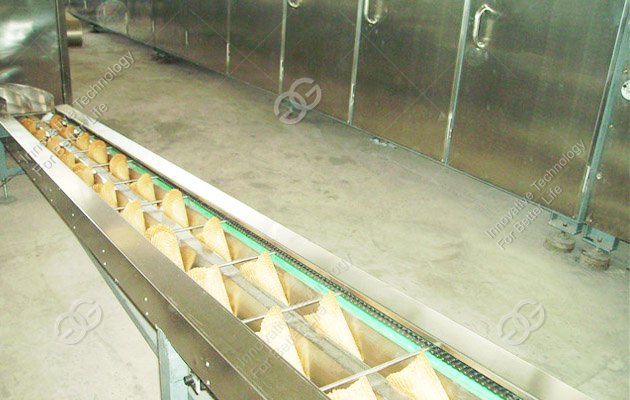

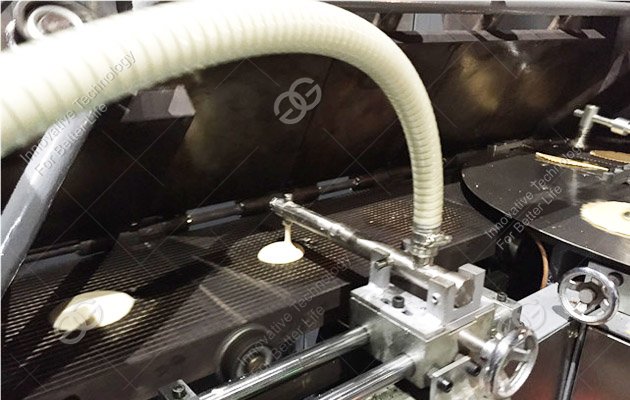

Full automatic filling paste,baking,rolling and conveying-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
Different size,angle,thickness,depth ice cream cone can be customized.
Electric heating and gas heating can be choose.
Related Product: Automatic Ice Cream Cone Production Line
Related Product: Automatic Ice Cream Cone Production Line
Technical Data
Model | Dimension | Drive Motor | Rolling System Motor | Air blower | Gas Consumption | Capacity | Weight |
GG107-24B | 14.5*2.1*1.65 | 3KW | 0.37KW | 2.2KW | 12-15 kg | 5000-6000 | 8500 |
GG79-20B | 11.02*2*1.65 | 1.5KW | 0.37KW | 1.5KW | 8-10 kg | 3500-4500 | 6500 |
GG61-16B | 8.86*1.9*1.65 | 1.5KW | 0.37KW | 1.5KW | 6-8kg | 2500-3500 | 4900 |
GG53-16B | 8.2*1.9*1.65 | 1.5KW | 0.37KW | 1.5KW | 7-9kg | 2200-3200 | 4500 |
GG45-16B | 7.24*1.9*1.65 | 1.5KW | 0.37KW | 1.5KW | 6-7kg | 2000-2600 | 4000 |
GG37-16B | 5.98*1.9*1.65 | 1.1KW | 0.37KW | 1.1KW | 5-6kg | 1600-2200 | 3600 |
