Features

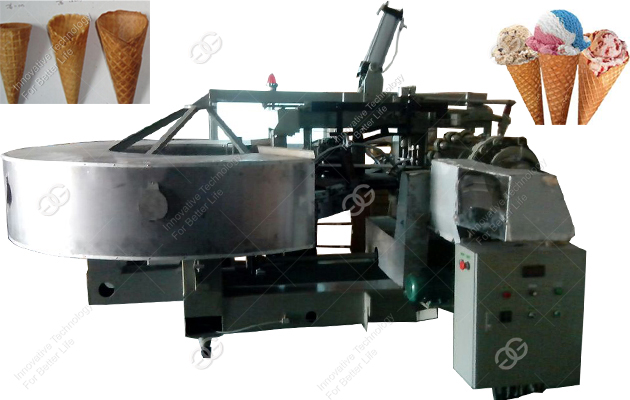

Automatic Waffle cones machine|Sugar Cone Machine is suitable for industrial ice cream cone baking and rolling, which is popular for bakery equipment, western food shop equipment, drinks shop equipment, Chinese food shop equipment, leisure food factory equipment.
Features:
The flour is the base material for this machine, with appropriate condiments, then add water and stir then into the batter, adding quantitatively into the mould, by heating puffing, it becomes edible and attractive appearance of the containers, commonly known as “egg tray”.
Used to make crispy sugar cones,ice cream cones,cake cup,etc.
Introduction:
This automatic waffle cones machine is used to offer the cones for the perfusion of ice cream in the next process, which is also the chief product of the production line.

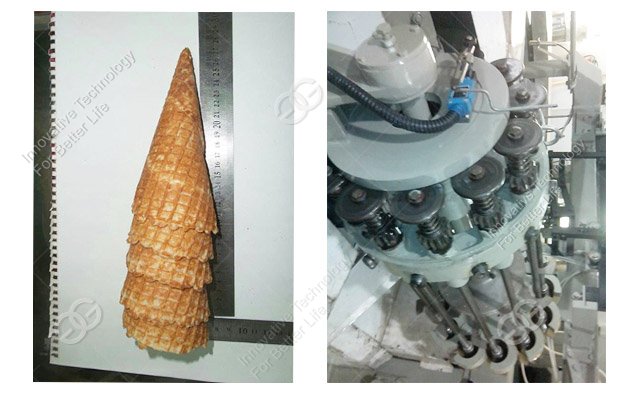

It first sets the syrup on the baking panel to bake it crisp then roll it up and shape it as cone, later on the machine finalizes the shape and collects the cones from the panel.
Related Product: Semi-automatic Ice Cream Cones Machine
It first sets the syrup on the baking panel to bake it crisp then roll it up and shape it as cone, later on the machine finalizes the shape and collects the cones from the panel.
Related Product: Semi-automatic Ice Cream Cones Machine
Technical Data
Model | GG25 | GG40 | GG36 | GG30 |
Capacity | 2500pcs/h | 2400pcs/h | 2100pcs/h | 1800pcs/h |
Finished Product Size(22.5°) | 42-48mm | 48-52mm | 52-58mm | 58-68mm |
100-115 | 120-135mm | 135-140mm | 140-165mm | |
Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
LPG consumption | 4kg/h | 4kg/h | 4kg/h | 4kg/h |
Compressed air pressure | 0.6MPA | 0.6MPA | 0.6MPA | 0.6MPA |
Compressed air consumption | 6 MPa | 6 MPa | 6 MPa | 6 MPa |
Weight | 3000kg | 3000kg | 3000kg | 3000kg |
Outline size | 3000*2000*1680mm | 3000*2000*1680mm | 3000*2000*1680mm | 3000*2000*1680mm |
