Features

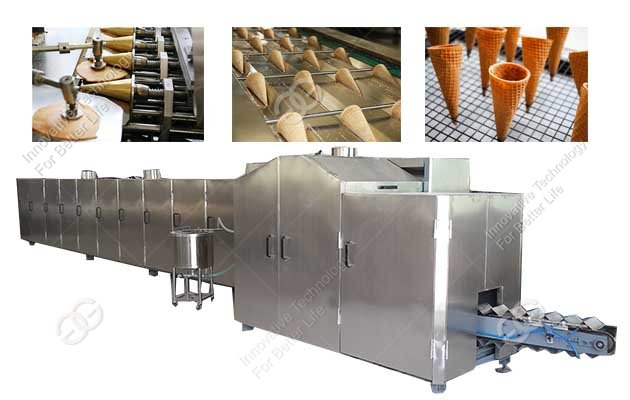

Automatic Ice Cream Cones Production Line is mainly used to make crispy flat sugar cones. The height and diameter can be customized.
GELGOOG also provide Semi-automatic Ice Cream Cones Making Machine
GELGOOG also provide Semi-automatic Ice Cream Cones Making Machine
1.The machine is suitable for making flat sugar cones with size length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
2.The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Video:
Video:
Technical Data
Model | GG37×2-16A | GG45×2-16A | GG53×2-16A | GG61×2-24A | GG75×2-30A |
Drive motor | 380V 1.5KW | 380V 1.5KW | 380V 2.2KW | 380V 2.2KW | 380V 2.2KW |
Rolling system motor | 380V 0.37KW | 380V 0.37KW | 380V 0.37KW | 380V 0.37KW | 380V 0.37KW |
Air blower | 380V 1.1KW | 380V 1.1KW | 380V 1.6KW | 380V 2.2KW | 380V 2.2KW |
Gas consumption (kg/h) |
5-7 | 6-7 | 8-12 | 9-11 | 11-13 |
Producing capacity (pcs/h) |
3500-4000 | 4500-5000 | 5500-6000 | 6500-7000 | 7500-8000 |
Food-grade conveyor | 5000*460*500 | 5000*460*500 | 5000*460*500 | 5000*460*500 | 5000*460*500 |
Automatic counter | 3000*460*400 | 3000*460*400 | 3000*460*400 | 3000*460*400 | 3000*460*400 |
Mixer | 190L | 190L | 190L | 190L | 190L |
Machine measurement (m) |
7.05×1.90×1.73 | 8.52×1.90×1.73 | 9.80×1.90×1.73 | 11.32×1.90×1.73 | 13.52×1.90×1.73 |
Total weight | 4200kgs | 4800kgs | 5300kgs | 5800kgs | 7200kgs |
