Features
Introduction:

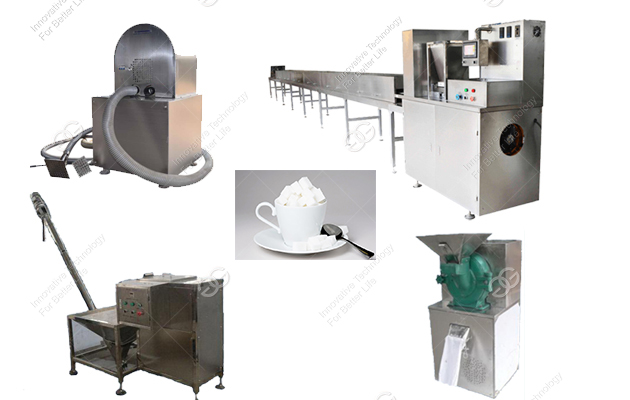

Cube Sugar Production Line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards, long service life and easy to maintain. Continuous sugar making machine can continuous production, high efficiency. Effectively improve the work efficiency and reduce the labor intensity
Capacity: 100kg/h, 200kg/h, 300kg/h, 500kg/h, 1000kg/h etc. We can customize machine according to your production demand.
Advantages:
1.The equipment is a kind of cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting.
2. It has two specifications of 16*16*13mm, 16*16*15mm and 18*18*12mm
3.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic.
4.We have hydraulic type and pneumatic type cube sugar making machine for your choose.
5.By changing the molds, this plant is able to produce various shape of high quality sugar cube such as square sugar, heart-shaped sugar and special shape sugar cube.
6.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic, high quality and popular all over the world.
Cube Sugar Production Line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards, long service life and easy to maintain. Continuous sugar making machine can continuous production, high efficiency. Effectively improve the work efficiency and reduce the labor intensity
Capacity: 100kg/h, 200kg/h, 300kg/h, 500kg/h, 1000kg/h etc. We can customize machine according to your production demand.
Advantages:
1.The equipment is a kind of cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting.
2. It has two specifications of 16*16*13mm, 16*16*15mm and 18*18*12mm
3.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic.
4.We have hydraulic type and pneumatic type cube sugar making machine for your choose.
5.By changing the molds, this plant is able to produce various shape of high quality sugar cube such as square sugar, heart-shaped sugar and special shape sugar cube.
6.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic, high quality and popular all over the world.
Technical Data
Name | Model No. | Capacity | Motor power | Dimension | Weight | Others |
Sugar Grinder Machine | GG-200 | 50-150kg/h | 2.2kw | 780*750*1500mm | 250kg |
Feed size: <5mm Grinding fineness:12-150mesh |
Mixed Spiral Feeding Machine | GG-SG | 3.85kw | 500*500*1650mm | 140kg |
Function: mixing and automatic feeding Discharge port from the ground: 1700mm |
|
Sugar Making Machine | GGF-80 | 150-200kg/h | 3kw,380V/50Hz | 1800*750*1750mm | 800kg | PLC control, man-machine interface. |
Tablet Linkage Conveyor |
GGS-2 | Air pressure: 0.3-0.5Mpa | 1300*700*1000mm | 60kg |
Function: Linkage & Transmission Efficiency: 0-10m3/min |
|
Infrared Drying Tunnel | GGH-3 | Efficiency: 0-10m3/min | 380V50Hz 2KW*6 | 1900*700*1150mm | 90kg*6 | |
Cooler Machine | GGQ-1 | Efficiency: 0-10m3/min | 1900*700*700mm | 60kg | Function: Cooling | |
Semi-automatic Cube Sugar Packing Machine | GG-250 |
220V/380V 50-60Hz 2.2kw |
650*600*950mm | 75kg |
Maximum pressure: 36(43)Kpa Maximum degree of vacuum: 26(31)KPA Table: customized Chuck handle: 2 pcs |
