Features
Application: Mainly used to making different specifications of sugar cubes or coffee sugar.
Introduction:

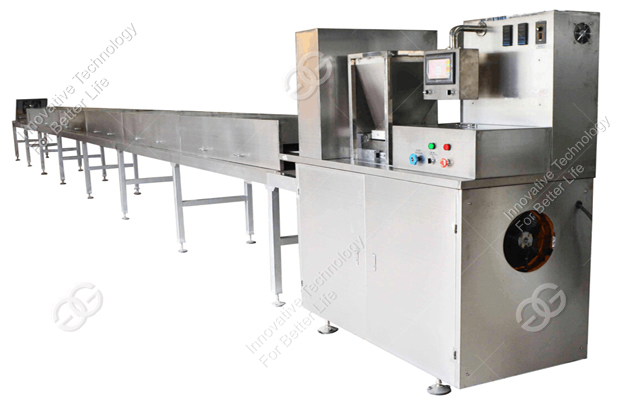

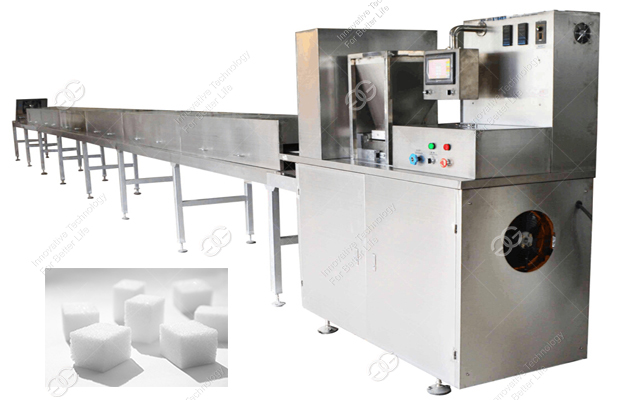

Cube Sugar Machine is mainly applied in the briquetting of sugar with cube shapes, the sugar has different specifications like 16*16*13mm, 16*16*15mm, 18*18*12mm and so on.
The mould can be customized according to clients' special requirements. The cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting, continuous work, high efficiency, save manpower material resources.
The sugar processing line consists of sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.
Introduction:
Cube Sugar Machine is mainly applied in the briquetting of sugar with cube shapes, the sugar has different specifications like 16*16*13mm, 16*16*15mm, 18*18*12mm and so on.
The mould can be customized according to clients' special requirements. The cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting, continuous work, high efficiency, save manpower material resources.
The sugar processing line consists of sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.
Technical Data
| Name | Model No. | Capacity | Motor power | Dimension | Weight | Others |
| Sugar Grinder Machine | GG-200 | 50-150kg/h | 2.2kw | 780*750*1500mm | 250kg |
Feed size: <5mm Grinding fineness:12-150mesh |
| Mixed Spiral Feeding Machine | GG-SG | 3.85kw | 500*500*1650mm | 140kg |
Function: mixing and automatic feeding Discharge port from the ground: 1700mm |
|
| Sugar Making Machine | GGF-80 | 150-200kg/h | 3kw,380V/50Hz | 1800*750*1750mm | 800kg | PLC control, man-machine interface. |
|
Tablet Linkage Conveyor |
GGS-2 | Air pressure: 0.3-0.5Mpa | 1300*700*1000mm | 60kg |
Function: Linkage & Transmission Efficiency: 0-10m3/min |
|
| Infrared Drying Tunnel | GGH-3 | Efficiency: 0-10m3/min | 380V50Hz 2KW*6 | 1900*700*1150mm | 90kg*6 | |
| Cooler Machine | GGQ-1 | Efficiency: 0-10m3/min | 1900*700*700mm | 60kg | Function: Cooling | |
| Semi-automatic Cube Sugar Packing Machine | GG-250 |
220V/380V 50-60Hz 2.2kw |
650*600*950mm | 75kg |
Maximum pressure: 36（43）Kpa Maximum degree of vacuum: 26（31）KPA Table: customized Chuck handle: 2 pcs |
