Features
Feture：
1.Low energy consumption
2.Stainless steel
3.Experienced manufacturer with high tech
Application：
Hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.
Introduction：
1.The washing system is mainly used for extraction of refined starch milk, removing of contained soluble and insoluble proteins and the possible small fiber.
2.Principles: Starch milk and wash water was the upstream way through the washing system, referring main flow chart of multi-stage cyclone separator system (Figure 8).

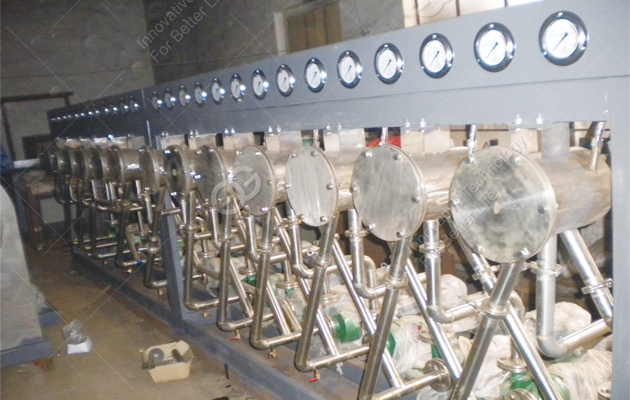

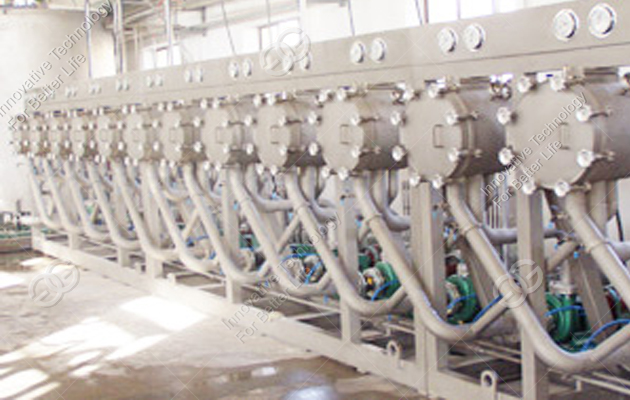

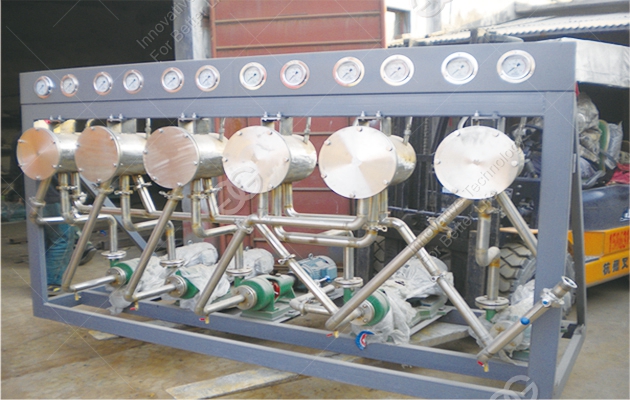

Washing system usually consists of 6 to 12 stages .and each cyclone consists of several parallel-connected hydro-cyclone tubes.
3.Each stage has feed interface, bottom stream interface and overflow interface.
4.The bottom stream containing condensed milk, while the overflow containing soluble substances and small slag. The overflow of certain stage together with the bottom flow of previous stage is conveyed into the feeding bin of the middle stage. Starch milk is fed from first stage then conveyed through each stage in sequence, it is finally discharged from the last stage.
4.The bottom stream containing condensed milk, while the overflow containing soluble substances and small slag. The overflow of certain stage together with the bottom flow of previous stage is conveyed into the feeding bin of the middle stage. Starch milk is fed from first stage then conveyed through each stage in sequence, it is finally discharged from the last stage.
5.Overflow contains dilute starch milk and impurities to be removed. Washing water enters from feeding pump in the last stage and backflows in sequence until the first stage then finally overflows there, discharging the impurities such as protein small fiber residue.
Technical Data
| Model | GG205 | GG250 | GG300 | GG350 | GG405 | GG450 |
| Feed presure(bar) | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
| Sepratating factor | 3000-6000 | |||||
| Output presure(bar) | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| Power of pump/unit(kw) | 5.5 | 7.5 | 15 | 18.5 | 22 | 37 |
| Capacity(t/y) | 5000 | 10000 | 20000 | 30000 | 40000 | 60000 |
| Flux(m3/h) | 12.5-20 | 20-30 | 30-40 | 40-50 | 50-70 | 70-100 |
