Features

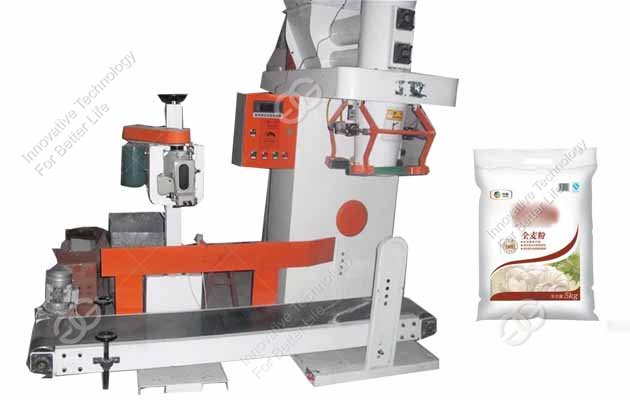

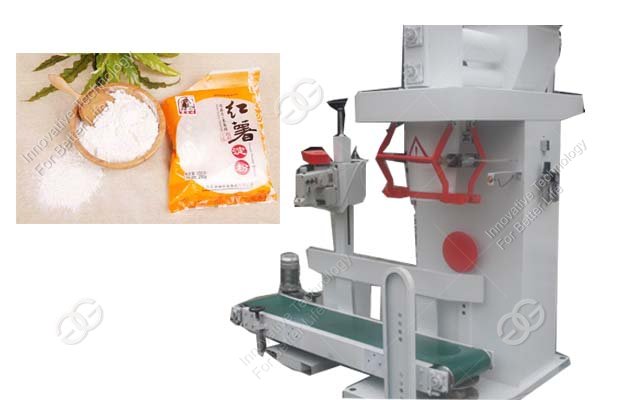

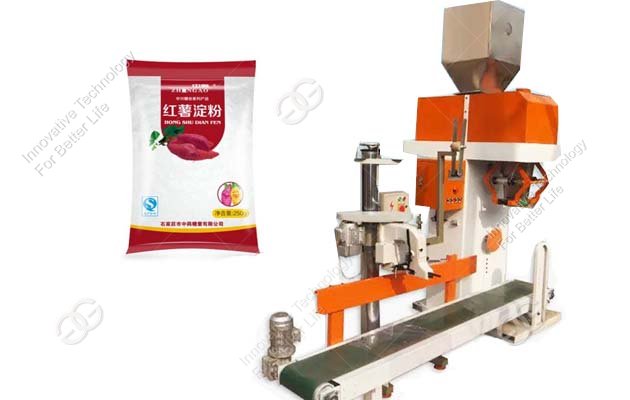

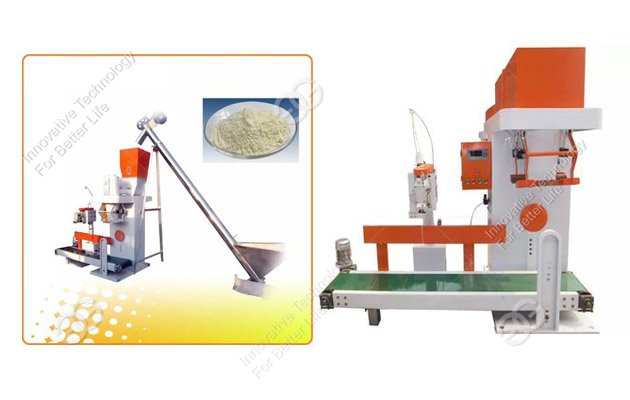

Applications of Automatic Flour|Starch Packaging Machine: Flour, feed, chemicals and other powdery material quantitative packaging.
The main features:
★ Frequency control, screw feeder, to adapt to the flow of materials, packaging speed, high precision packaging.
★ No measurement of barrel structure, the whole height is low, small footprint, with the table can lift the transport sewing machine, a multi-purpose machine.
★ Specially designed to beat the bag body, folder bag sealing mechanism, more suitable for powder material packaging.
★ Display PLC control instruments, a class production, Nissan, the cumulative production of information automatically stored.
The main technical parameters:.
★ Weighing capacity: 3 to 4 packages / min
★ host power: 1.1KW
★ Weighing range: 10 ~ 50kg / bag
★ Weighing error: ± 0.2%
Technical Data
Model | GG-S |
Capacity | 3-4bags/min |
Weighing Range | 10-50kg/bag |
Mis-weighting Ranger | ±0.2% |
Control Way | PLC microcomputer control |
Voltage | AC380V |
Power | 1.1kw |
Pressure | 0.4---0.5MPa |
Gas Consumption | 0.4Nm3/min |
