Features

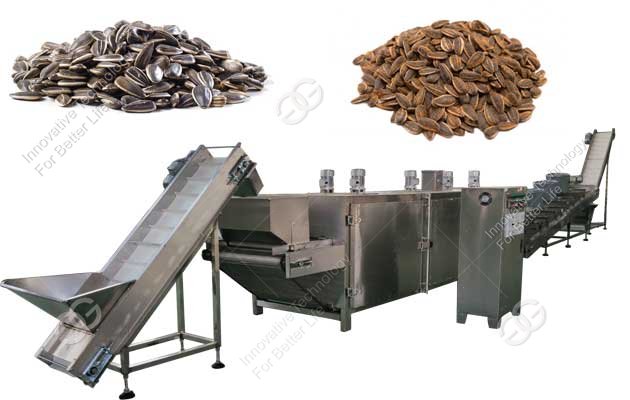

Automatic Sunflower Seed Roasting Processing Line is widely used for roasting seeds and nuts, with three models of capacties for your selection. Capacities range from 300-1000kg/h.The roasted nuts is delicious, sanitary with good colour.
Video:
This kind of sunflower seed roasting machine is multi-purpose for peanut,sesame,almond,cashew nut,chestnut,beans, pumpkin seed,walnut,hazelnut,pinenuts.etc
Related Product: Continous Nut Roasting Machine
Video:
This kind of sunflower seed roasting machine is multi-purpose for peanut,sesame,almond,cashew nut,chestnut,beans, pumpkin seed,walnut,hazelnut,pinenuts.etc
Originally set temperature of oven can be regulated via regulating proportional burner controller and parameter of electric steam valve at top of oven so that low temperature drying and high temperature baking can be finished.
This roasting machine is with reasonable heat distribution design to make the airflow uniformity,thus ensure the uniform roasting resulting obtainable, and integrated cooling system to prevent the over-roasting and keep the nuts at the optimum condition.
Note:
1. All the stainless steel thickness 1-2mm
1. All the stainless steel thickness 1-2mm
2. All the electric parts are Schneider Brand
3. There is isolation between heating part and machine body,and the thickness is 50mm(For roasting machine)
Related Product: Continous Nut Roasting Machine
Technical Data
NO | Name | Parameters |
1 |
Cleaning Machine (Picture is carbon steel ,only for reference) |
Powe:0.75kw Fan Power:0.75kw Dimension:1500x700x1900mm Capacity:300-500kg/h |
2 | Seasoning Machine |
Power:0.55kw/380v Weight:150kg, Dimension:1300x1100x1550mm Diameter:1100,Height:600 |
3 | Feeder Machine |
Dimension:2500x700x1500 Power:0.37KW |
4 |
Roasting Machine (Gas Heating) |
Power:55KW/380V Weight:1500KG Dimension:8000x1200x1350mm |
5 |
Cooling Machine (Two parts:one part 3M,another one is 3M Can get L shape to save length of factory) |
Power:1.5kw Fan Power:4x0.55kw Dimension:6000x1000x1000mm |
