Features

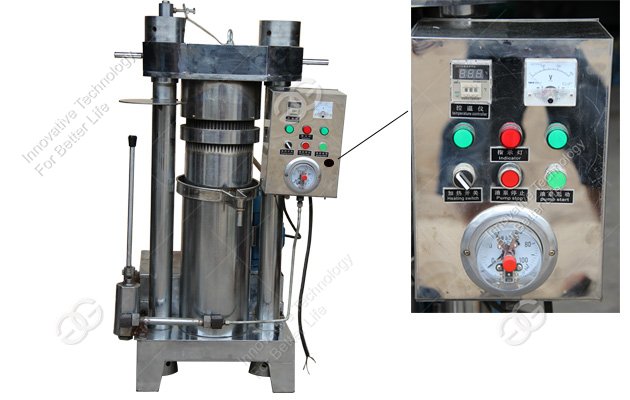

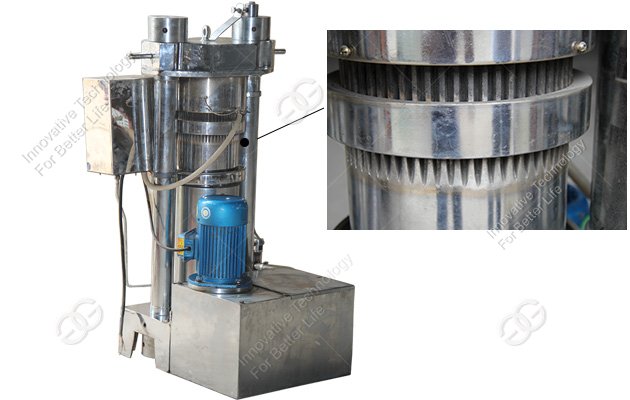

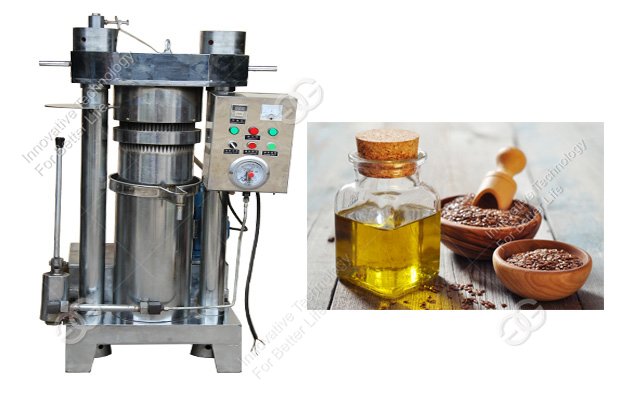

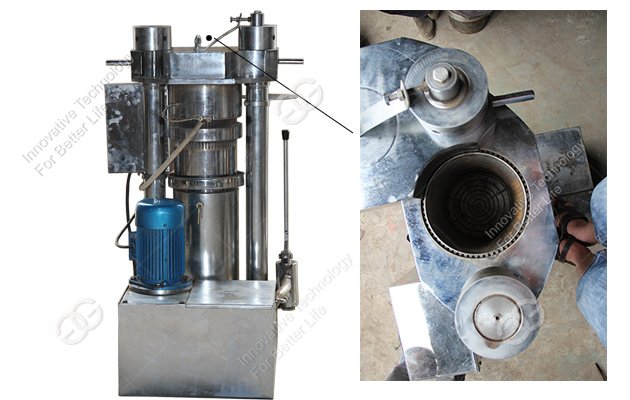

This Hydraulic Oil Pressing Machine is used to press oil from the roasted seeds and nuts,sunflower seeds, almond, walnut,peanut etc.
Main components: the piston, hydraulic cylinder, pillar, pedestal, oil pump, cylinder, electric heating circle, and automatic temperature control device, etc.Material adopt high quality metal materials, and improve the machine performance, ensure the service life of parts.

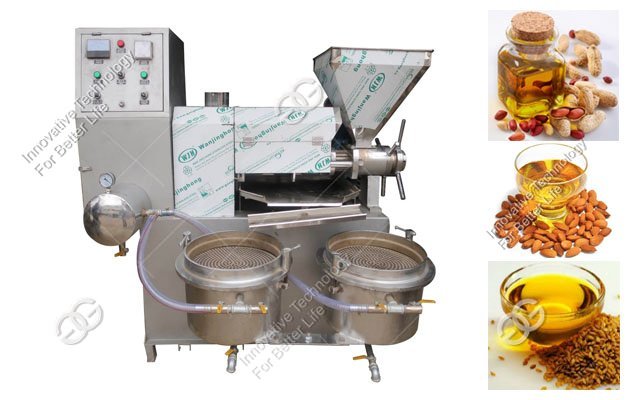

Related Product: Automatic Screw-type Oil Press Machine
Related Product: Automatic Screw-type Oil Press Machine
Technical Data
| Model | GG-180 | GG-230 | GG-280 |
| Pressure | 55Mpa | 60Mpa | 60MPa |
| Piston stroke | 450mm | 550mm | 550mm |
| Feeding Diameter | 180mm | 230mm | 280mm |
| Capacity(Per time) | 3-3.5kg | 7-8kg | 12-13kg |
| Heating power | 1kw | 1kw | 1kw |
| Hydraylic Motor power | 1.1kw,380V | 1.5kw,380V | 2.2kw,380V |
| Nominal pressure | 1600KN | 2200KN | 3000KN |
| Capacity | 30KG/H | 50-60KG/H | 70-80KG/H |
| Dimension | 800*650*1100mm | 900*750*1400mm | 1100*1000*1500mm |
| Weight | 530kg | 880kg | 1320kg |
