Stick Dry Noodles Making Machine

  • MOQ:1Set/Sets
  • Brand:GELGOOG MACHINERY
  • Certification:CE
  • Supply Ability:200Sets/Per Month
  • Pay Method:WEST UNION L/C T/T CASH
  • Warranty Time:12 Months
  • Loading Port:Qingdao Port,China
  • Country Of Origin:China
Leave message for free quotation.
*Please enter the numbers in the picture validate
Features

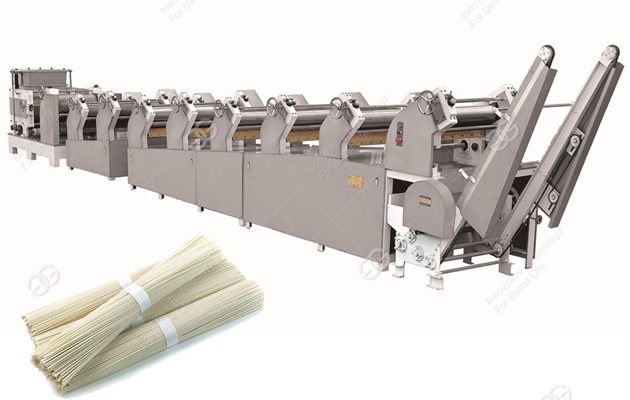

Vermicelli making machine, also named stick noodle production line of our company uses vacuum mixing technology and photoelectric control technology, showing the advanced level of the domestic industry. This vermicelli production line is equipped with excellent equipment, and the whole process is highly automated, it can be operated, and production continuity is good, the product quality is excellent, the finished product rate is high, and the energy consumption is low.

Related Product: Fresh Noodle Machine

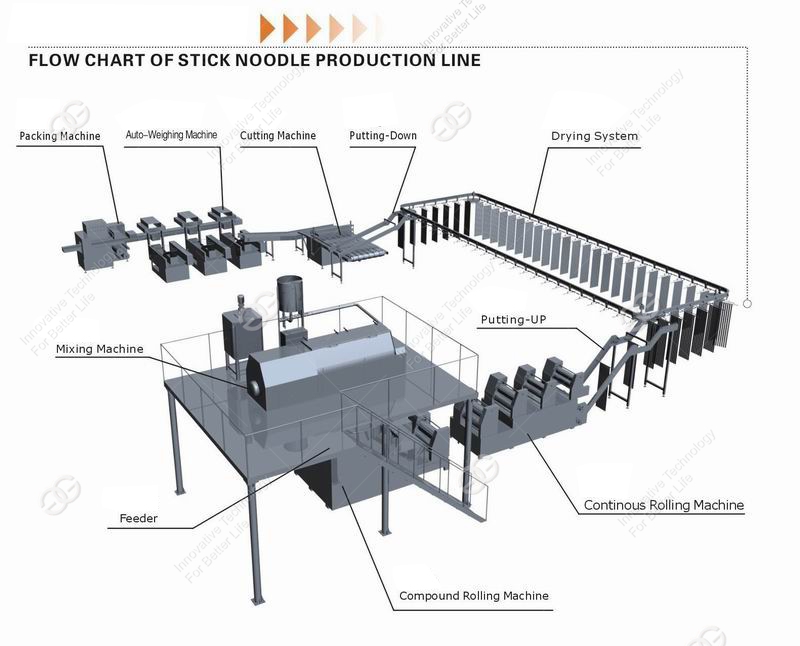

Flow Chart of This Noodle Plant:
stick noodle dry noodle

Technical Data
No. Equipment Name Model Qty Remark
1 Measure and Feeding Machine GGYSJ10 1set Pump 0.75kw, Volume 110L, with liquid level display, round tank, stainless steel.
2 Double Shaft and Speed Mixer GGHMJ200 1set Motor power 6.5/8kw, 150kg/batch, manual opening, food contact parts are made
 of stainless steel and nylon
  Falling Powder Bucket   1pc Stainless steel, produce according real install size.
3 U Type Dough Ripening Machine GGXHJ200 1set   Power 4kw, 200kg/batch, 1600×800×750 Contact part is stainless steel.
4 Compound and Continuous Dough Rolling Machine GGMT7-50 1set Slitting width 350mm, power 5.5kw+5.5kw, 7pairs steel roller, machine is steel
structure(frequency control), roller diameter, φ180×2, φ240×1, φ180×2, φ162, φ120
5 Hanging Stick Supplying Machine GGGT450 1set Power 1.5kw (frequency control), noodle length adjustable, front and rear uniformity
adjustable.
6 Noodle Cutting Tidy Machine GGZJQ800 1set Power 1.1kw
7 Hanging Rising Machine GGSJ350 1set Power is supplied by Hang Stick Supply Machine, carbon steel.

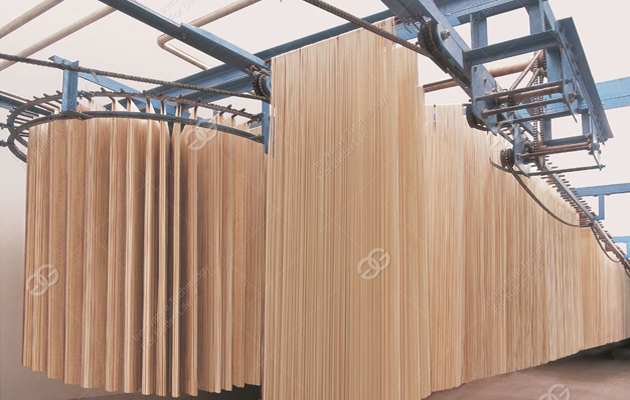

8 Chain Plate Drying Machine GGPHF30 1set Main power 3kw (frequency control), industrial fans 0.75 kw ×13 sets, moisture removal
fans, 4 kw×1set(or 0.6kw*6sets), 4 rows rod, length 50m, drying time 4hours. Stainless
steel noodle hanging rods 4000pcs.
9 Sideway Hang Down Machine GGXJ350 1set Power 1.5kw(frequency control), carbon steel.
10 Automatic Hob Cutting Machine GGZQM50A 1set Noodle length adjustable 120~290mm, power 0.8kw.
11 Electric Control System   1set Host to drying room main transmission adopts to frequency control, PLC control,
Domestic electrical components, not include cable
  Total Total Power ~75kw
