Features

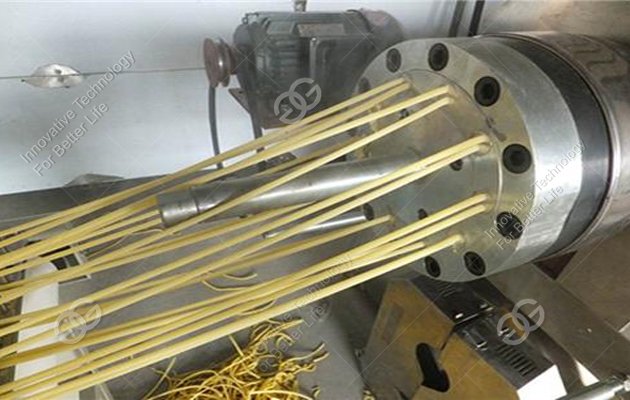

Macaroni Pasta Production Line is a new-designed production line which adopts abroad advanced technology also combined with our engineer research. Pasta macaroni production line is produced by single-screw extruder through the single screw extruder or twin screw extruder high pressure extruding, high temperature heating finally through the Mould to form different Pasta shapes. The shape is like ring,round tube,square tube,sprial,shell,3S,circle tube and so on according to change the mould on the extruder head. The pasta quality can compare with Europe standard. The whole production line are made by stainless steel.The raw material adopts potato starch,Rice powder,corn starch, cassava starch,wheat flour, corn flour etc.The capacity can be customized according to customer’s requirement. Our product have gotten the high popularity in domestic and abroad.
Process Flow: Flour mixing--feeding--extruding--cutting--drying--cooling--conveying--Packing

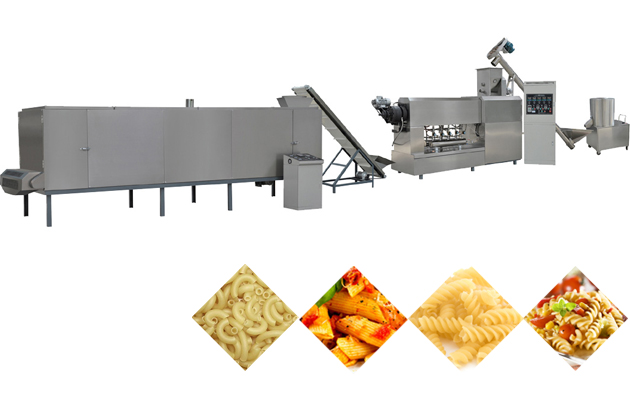

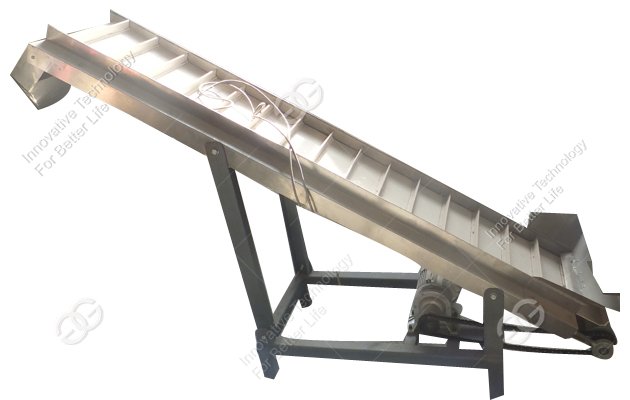

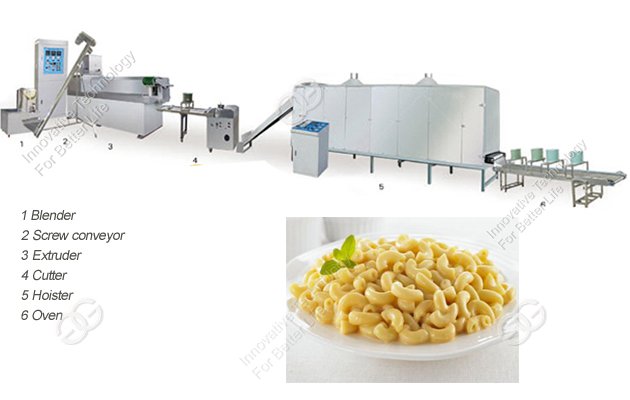

Equipments List: Mixer→ Screw conveyor→ Extruder→Cooling Conveyor →Cutter → Dryer→ Cooling conveyor
Video: Puffed Pasta Making Machine
Video: Puffed Pasta Making Machine
Technical Data
PRODUCT NAME | SPECIFICATION |
Raw Material Mixer |
mixing power: 3KW mixing rev: 365turns/min mixing capacity: 20KG/time 5min/turn) size: 1000*500*800mm |
Extruder and Moulding Machine |
Power: 54KW Size: 3500*1050*1960mm |
Cooling & Cutting Machine |
Power: 1.1KW Size: 2700X630X1020mm |
Cooling Bed |
Power: 0.24KW Production Capacity:20KG/time Size:1360mm*1000mm*400mm |
Drying Bed |
Heating Power: 15KW Production Capacity: 400-500KG/time Size: 2950*1550*1000mm |
