Features

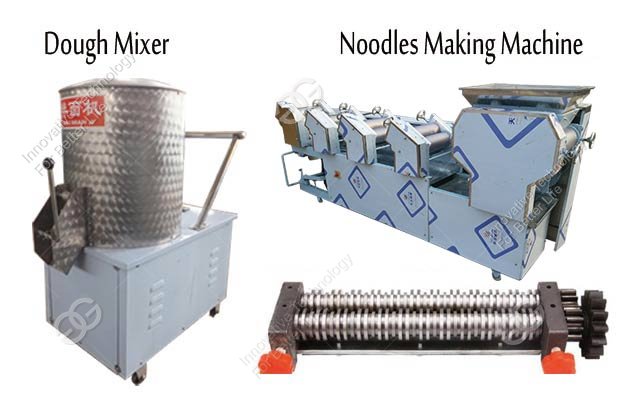

Automatic noodles making machine is professional for dough sheet pressing, noodle forming and cutting, which also have the function of automatic hanging. This equipment can also be put into noodle production line to use, which can connect with drying line. Whole process can be finished automatically, highly effective as well as non stop continuous noodles Making process.
Video:
Video:
As to the noodle molding knifes, we can customize the forming width of knifes according to customers’ exact demands; The knifes can be changed to get the noodles with different size easily when needed.

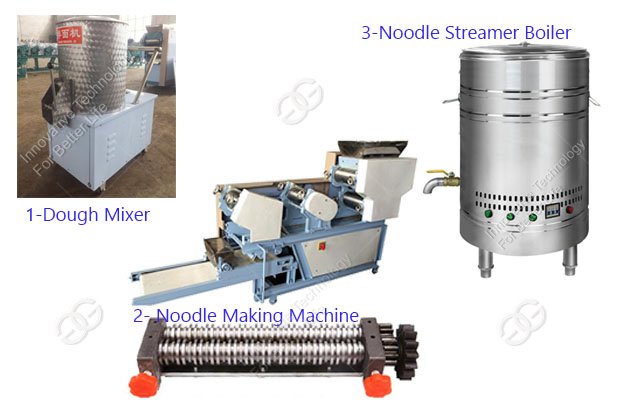

WORKING FLOW: Mixed flour —> Dough Sheet Pressing—>Noodle Forming—>Cutting—>Automatic Hanging on Rod—>Drying—>Cutting—>Packing
Related Products: Instant Noodle Plant
Technical Data
Model | Width of dough facets | Size of main pressing roller | Capacity | Power | Dimension | Weight |
GGMT5-200 | 200mm | Ø96*250mm | 150kg/h | 3KW | 1600*570*1220mm | 350kg |
GGMT5-250 | 250mm | Ø138*250mm |
150-170 kg/h |
3KW | 1500*650*1370mm | 550Kg |
GGMT5-260 | 260mm | Ø140*260mm | 180kg/h | 3KW | 1800*580*1250mm | 510kg |
GGMT6-200 | 200mm | Ø96*250mm |
180-210 kg/h |
3kw | 2000*600*1250mm | 550kg |
GGMT6-350 | 350mm | Ø138*350mm |
280-300 Kg/h |
4Kw | 2400*630*1370mm | 850Kg |
GGMT7-260 | 260mm | Ø138*260mm |
220-260 Kg/h |
4Kw | 2900*680*1370mm | 960Kg |
GGMT7-350 | 350mm | Ø138*300mm |
240-280 Kg/h |
4KW | 2900*680*1370mm | 980Kg |
