Features

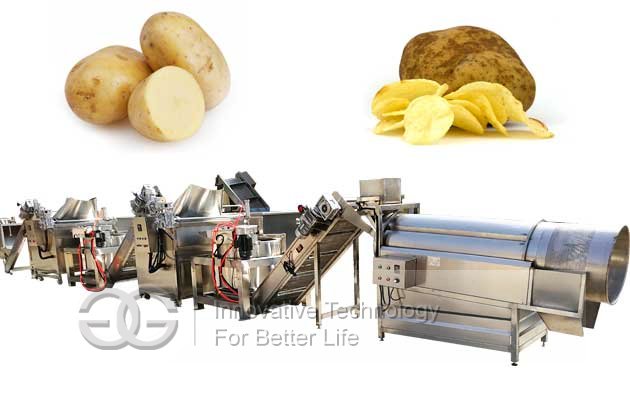

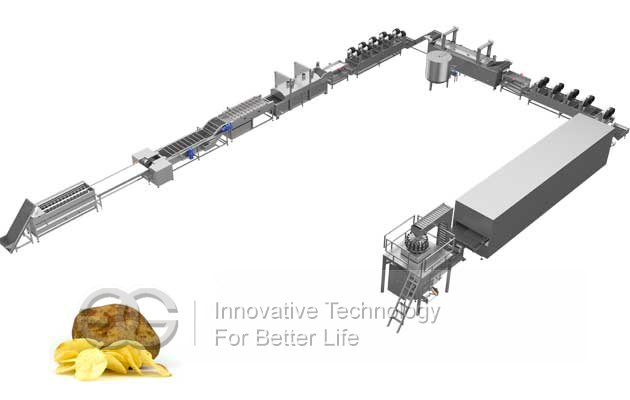

Working Process of Potato Chips Processing Plant|Cassava Chips Processing Line:
Mixing Raw Material----Calender----Forming---Air Drying---Fryer Machine---Vibration Oil Removal Machine----Air Drying Deoiling Machine--Flavoring Machine
Mixing Raw Material----Calender----Forming---Air Drying---Fryer Machine---Vibration Oil Removal Machine----Air Drying Deoiling Machine--Flavoring Machine

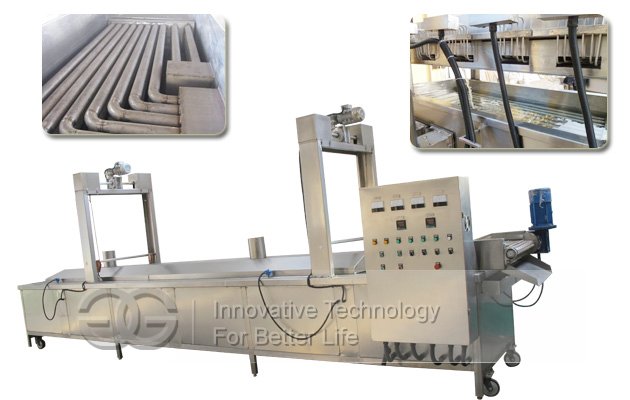

For this Potato Chips Processing Plant|Cassava Chips Processing Line, the finished size and shape can be designed according to the mould on the forming machine. One set of mould roller can produce one size. If you need different shape and different size, we can customize the mould for you. Machines are made of Stainless Steel 304. For the Calender Group, general, it is with three sets of rolling roller. For Fryer Machine, it is continuous type and will take about 1-3 minutes to fry this kind of compound potato chips. For Flavoring Machine, it is with 10r/min, working speed is adjustable. It is special with spice adding motor to control, and also can adjust the machine to control the amount of spice.
Related Products: Automatic French Fries Production Line
Related Products: Automatic French Fries Production Line
Technical Data
| Name | Specific |
| 1.Vacuum Flour Mixer(100kg) |
Capacity:100kg/time Power:20.25kw Size:2000*1000*1600(mm) Weight:700kg |
|
2.Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200(mm) Weight:200kg |
| 3.Calender Group |
Capacity:500kg/h Power:3kw Size:4000*900*2200(mm) Weight:1200kg |
| 4.Forming Machine | Power:1.5kw Size:1100*900*1200(mm) Weight:260kg |
| 5. Drying Line |
Capacity:500kg/h Power:76kw Size:8000*1100*1200(mm) Weight:1200kg |
|
6. Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200(mm) Weight:200kg |
|
7.Fryer |
Capacity:500kg/h Power:170kw Size:5000*1200*2400(mm) Weight:2000kg |
| 8.Vibration Oil Removal Machine |
Capacity:500kg/h Power:0.5kw Size:1800*800*1000(mm) Weight:180kg |
| 9. Air Drying Deoiling Machine |
Capacity:500kg/h Power:10.1kw Size:4000*1200*1400(mm) Weight:600kg |
| 10.Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200(mm) Weight:200kg |
| 11.Flavoring Machine |
Capacity:500kg/h Power:0.75kw Size:2400*900*1700(mm) Weight:280kg |
